1500W
Peak Motor
32 Mph
Top Speed
60 Miles
Range
20 x 4"
Fat Tires
720Wh-1680Wh
Battery
5'2"-6'2"
Recommended Height

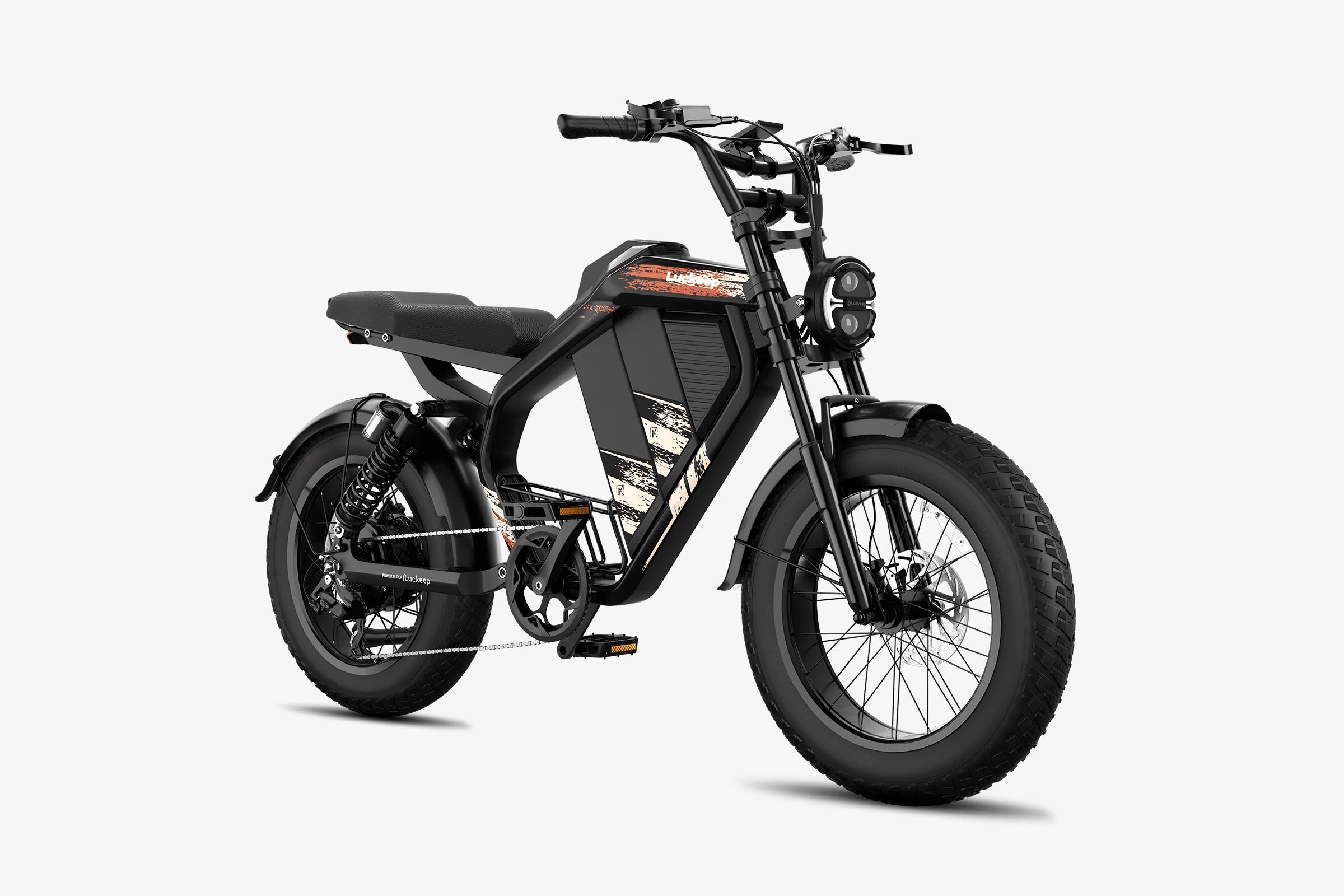

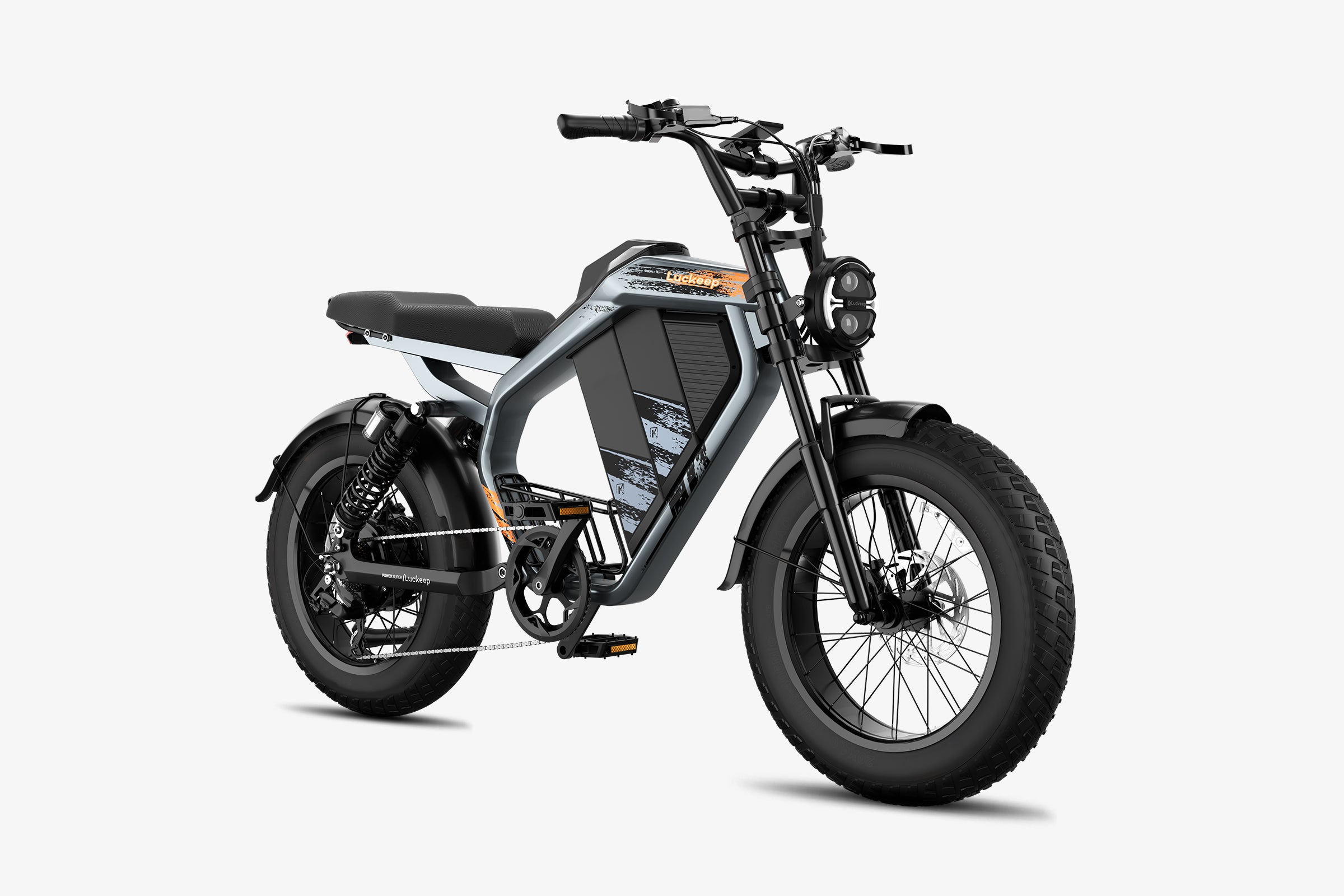

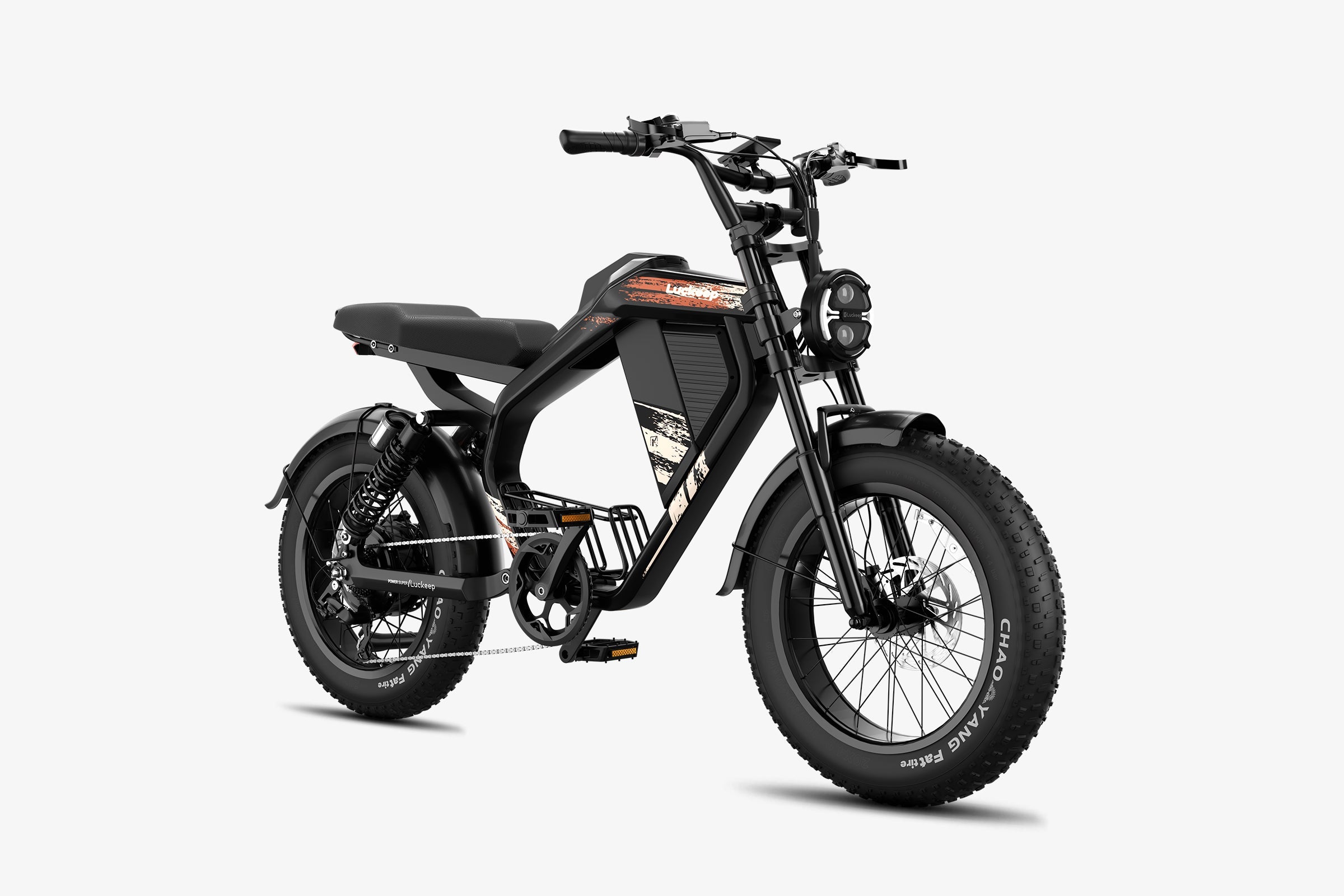

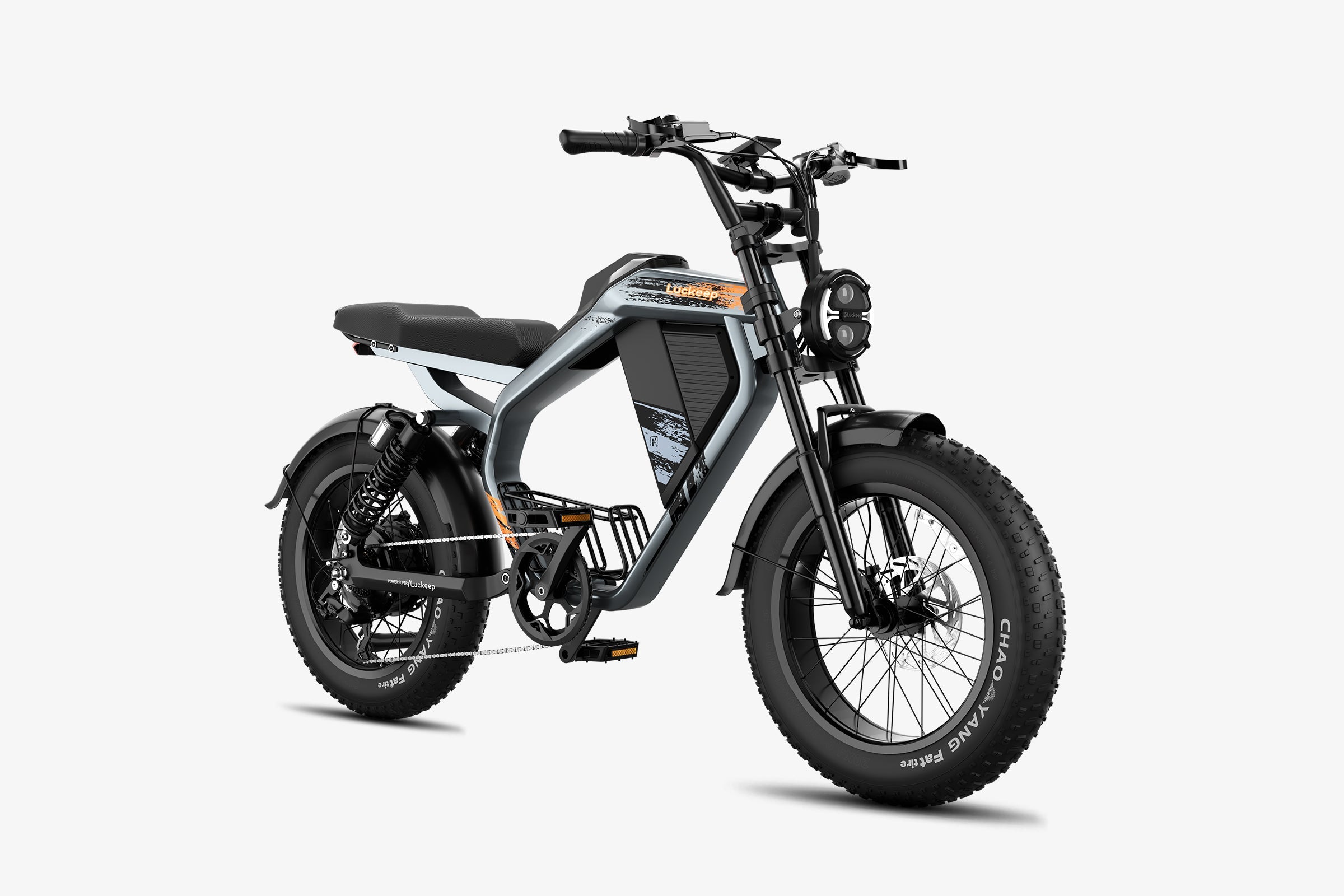

Luckeep M5
Full Suspension Electric Dirt Motorbike
Unstoppable Off-Road Power – The M5’s full suspension absorbs shocks for a smoother ride, while fat tires grip any terrain with ease. Powered by a high-torque motor, this electric motorbike is built for adventure, speed, and ultimate riding freedom.
1500W
Peak Motor
32 Mph
Top Speed
60 Miles
Range
20 x 4"
Fat Tires
720Wh-1680Wh
Battery
5'2"-6'2"
Recommended Height
Popular upgrades
Air Pump
$69.00
Cycling Sunglasses
$39.00
Cable Lock
$39.00
Customer Support Service: +1 (323) 448-7808 support@luckeepbike.com
UL Certified
Safety Certified in Accordance with UL 2849
Fast & Free Shipping
Shipping fees and tax are covered by Luckeep and will be completed by FedEx throughout the United States. Once the order is shipped, a shipment confirmation email and shipment tracking will be sent to your email address. ( We DO NOT ship to PO BOXES or APO.) It may take 2-5 days to deliver. Learn More
30 Day Risk Free Trial
We offer a 30-day trial period for all our brand new Ebike products. If you're not satisfied with the product, Luckeep's return policy allows you to return it within 30 days of receipt. However, to qualify for this, your product must be free of wear, dirt, and the mileage on the odometer should be less than 10 miles. Learn More
1 Year Warranty
All Luckeep ebikes are included in the 1-year all-inclusive warranty provided by our manufacturer for the original owner in case of all manufacturing defects. The warranty service does not include free accessories and batteries). After the initial owner receives the product, he begins to enjoy a 1-year warranty period. Learn More
Luckeep M5
| Version | Luckeep M5 | Luckeep M5 Max |
| Motor |
1000W Brushless DC Motor |
1500W Brushless DC Motor |
| Top Speed | 32MPH |
37.5MPH |
| Battery |
48v 15ah (Removeable) |
52v 20ah (Removeable) |
| Torque | 90 Nm | 120 Nm |
| Range | 60 miles | 80 miles |
| Display | 4.0" VA Color Screen | 4.0" VA Color Screen |
| Front Suspension | Spring Oil Fork | Upside-down fork |
| Rear Suspension | 200L 1200LBS COIL | 200L 1200LBS COIL |
| Rider Height | 5'2"-7'2" | 5'2"-7'2" |
| Max Load | 400 lbs | 400 lbs |
| Weight | 92.5 lbs | 92.5 lbs |
| Tire |
20 x 4" Fat Tire |
20 x 4" Fat Tire |
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
Shipping Information
Shipping fees are covered by Luckeep and will be completed by FedEx throughout the United States. Once the order is shipped, a shipment confirmation email and shipment tracking will be sent to your email address. ( We DO NOT ship to PO BOXES or APO.) It may take 2-7 days to deliver. Learn More
30 Day Risk Free Trial
We offer a 30-day trial period for all our brand new Ebike products. If you're not satisfied with the product, Luckeep's return policy allows you to return it within 30 days of receipt. However, to qualify for this, your product must be free of wear, dirt, and the mileage on the odometer should be less than 10 miles. Leaen More
1 Year Warranty
All Luckeep ebikes are included in the 1-year all-inclusive warranty provided by our manufacturer for the original owner in case of all manufacturing defects. The warranty service does not include free accessories and batteries). After the initial owner receives the product, he begins to enjoy a 1-year warranty period. Learn More
Customer Support
If you have any questions regarding products, services, orders, or various types of support, please feel free to contact us.
- Monday-Friday: 4pm-11pm PST
FAQ’s
Typically, our product manual can address most of your concerns, but you can still browse our FAQs or subscribe to our YouTube channel for more detailed video explanations.
Why Luckeep M5
M5 delivers exceptional power and performance with its 1000W high-torque motor, 32mph top speed, and 60-mile max range. Tackle steep hills, ride faster on open roads, and explore farther without limits. Built for both city streets and off-road trails.
Full Suspension
M5’s full suspension system features a Spring Oil front fork and a 1200lbs rear shock absorber, engineered to absorb intense shocks on rugged terrains. Whether tackling rocky trails or uneven paths, it ensures maximum stability, comfort, and control for an unbeatable off-road ride.
20X4'' Chao Yang Fat Tire
Ultimate Traction for Off-Road Dominance
Enhanced Traction & Grip
🔹 The 4-inch wide tread creates a larger contact patch, increasing grip on loose, uneven, or slippery surfaces like sand, gravel, and mud.
Superior Shock Absorption
🔹 Fat tires act as a natural suspension system, absorbing impacts from rocks, roots, and potholes.
Stability & Control on Any Terrain
🔹 The wider tire profile increases stability, reducing the chances of tipping over on uneven ground.
Low Tire Pressure for Maximum Performance
🔹 The Chao Yang fat tires can be run at lower PSI levels, allowing them to conform to the ground for better traction.
Whether you're tearing through mountain trails, desert dunes, forest paths, or snowy roads, these rugged tires ensure maximum grip, control, and comfort
6061 Aluminum Alloy Frame
- High Strength & Impact Resistance
- Lightweight for Better Handling
Unlike heavier steel frames, 6061 aluminum keeps the bike agile, allowing for quicker maneuvering around obstacles, sharp turns, and technical trails without compromising durability.
- Corrosion & Weather Resistance
Safety & Protection
UL Safety Certification
Each electronic component of the M5 has undergone rigorous testing and is UL 2849 safety-approved, including the battery
IP 67 Waterproof Battery
Sealed against dust and water, the battery withstands harsh conditions, ensuring durability and reliable off-road performance.
180mm Brake Rotor & Lights
Large hydraulic disc brakes provide strong stopping power, while bright LED lights enhance visibility for safer night rides.
Discover Luckeep M5
1000W DC Hub Motor
Delivers 90Nm torque for steep climbs and rapid acceleration. Top speed of 32MPH, perfect for city commutes and off-road adventures with consistent power output.
Full Suspension
Features front suspension fork and rear oil-spring shocks, absorbing impacts on rugged trails for unmatched comfort and control on all terrains.
20x4" Fat Tires
Wide tires improve traction, stability, and shock absorption, making them perfect for sand, snow, gravel, and city streets.
7-Speed Shimano Transmission
Provides seamless gear shifts for tackling hills or cruising flats, ensuring a smooth and adaptable riding experience across diverse terrains.
3.5" VA display with NFC
offering clear real-time riding data and seamless keyless unlocking for enhanced convenience and security.
Moto-Style Round Headlight
Stylish and powerful, this headlight ensures superior nighttime visibility with a vintage-inspired design, blending aesthetics with safety.
Mechanical Disc Brakes
180mm Rotors, Reliable braking power in all conditions, with large rotors ensuring enhanced safety and shorter stopping distances.
Technical Specifications
General Info
- MODEL: Luckeep M5 Dirt Ebike
- IDEAL USE: Off-Road/Commute
- RANGE: 60 miles
- SPEED: 32 MPH
- WEIGHT: 95 lbs (Including battery weight)
- TOTAL WEIGHT LIMIT: 400 lbs
- RIDER HEIGHT: 5'2"-7'2"FT
- PEDAL ASSIST: 5 levels
Frameset
- FRAME: 6061 Aluminum Alloy
- FORK: Spring Oil Fork
- REAR SUSPENSION: 200L 1200LBS COIL
- SADDLE MATERIAL: Foam + Leather
Wheelset
- RIM: Aluminum Alloy
- SPOKES: Yes
- TUBES: Rubber
- TIRES: 20x4" Puncture Resistant Fat Tire
Ebike System
- THROTTLE: Twist Throttle with Cruise Control
- MOTOR: 1000w, 48V DC Hub Motor 90Nm
- DISPLAY: 3.5" VA display with NFC
- BATTERY: 48V 15AH (720Wh) lithium battery
- SENSORS: Speed Sensor
- CHARGER: 54.6V 2A Smart Charge, Charging time is about 6-7 hours
- LIGHTS: Front LED light, rear light with brake signal and turn signal blinker.
- BRAKES: Mechanical Disc Brakes, 180mm Rotors
Drivetrain
- BOTTOM BRACKET: Square Taper, Sealed, Speed Sensor
- PEDALS: 9/16"
- REAR DERAILLEUR: 7 Speed Shimano Rear Derailleur
- CASSETTE: Shimano 7-Speed
- SHIFT LEVER: 7 Speed Trigger
Included in the Box
Luckeep M5
User Manual
Battery Charger
Battery Pack
Headlight
Accessories
About Luckeep M5
To learn more about Luckeep electric bicycles, please browse our FAQs.
How powerful is the 1000W motor compared to standard e-bike motors?
It delivers high torque and acceleration, ideal for tackling steep inclines and rough terrain.
How does the motor handle wet or muddy conditions?
It’s fully sealed and protected from water, ensuring reliability in all weather conditions.
How does the full suspension improve my off-road riding experience?
It absorbs shocks from rough terrains, providing a smoother and more controlled ride.
Can the M5 handle extreme drops and jumps?
The high-load spring oil fork and 1200lbs rear shock absorber are designed to absorb heavy impacts.
What makes 6061 aluminum better than regular aluminum?
It’s lighter yet stronger, providing durability without adding unnecessary weight.
Is the frame sturdy enough for aggressive off-road riding?
Yes, it's engineered to withstand high-impact forces while maintaining structural integrity.
Are the tires puncture-resistant?
Yes, they are reinforced to withstand rough terrain and reduce the risk of flats.
Can I swap out the battery for longer rides?
Yes, the removable battery design allows for easy swapping with a spare for extended adventures.
