1400W
Peak Motor
28 MPH
Top Speed
70 Miles
Max Range
20 x 4"
Fat Tires

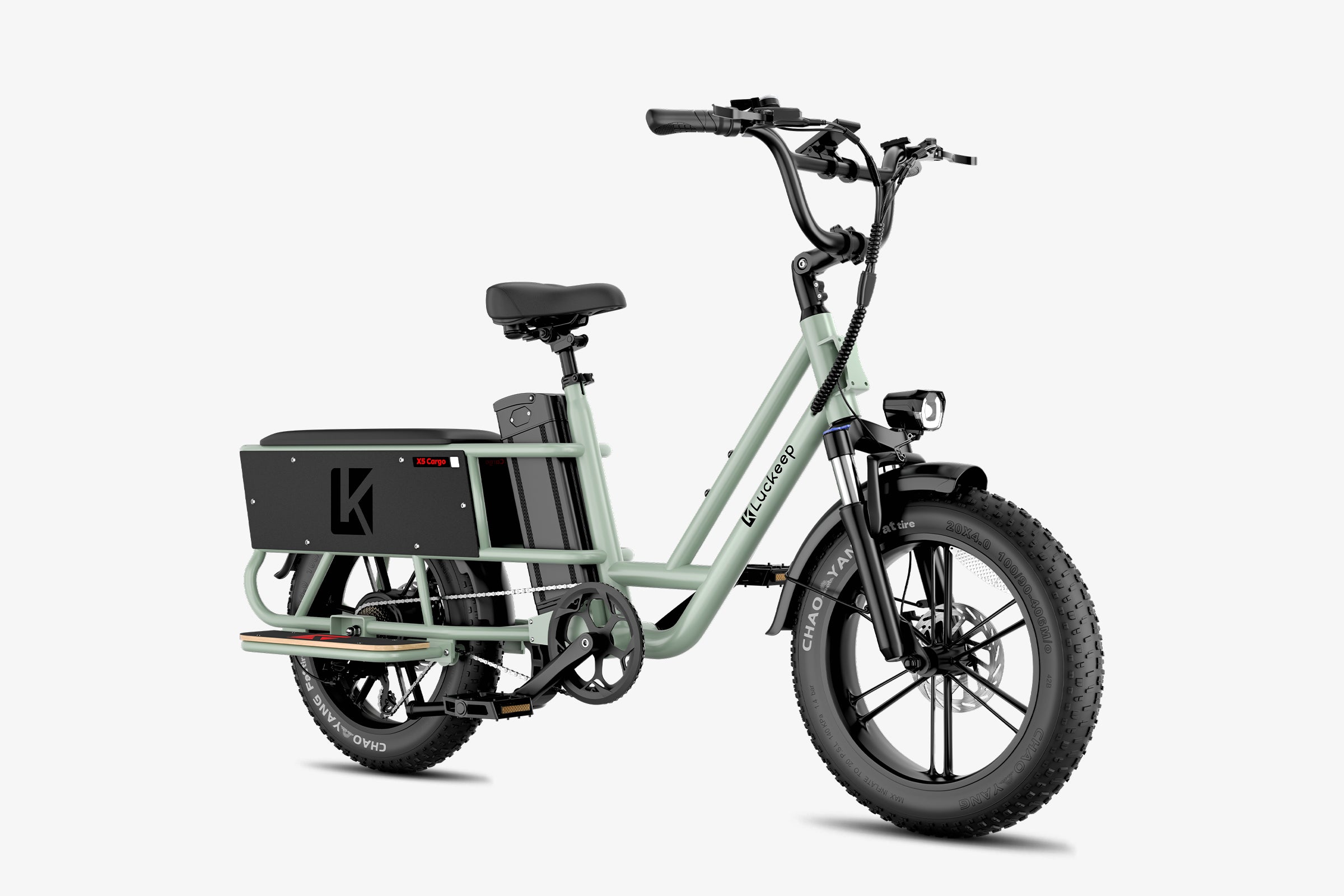

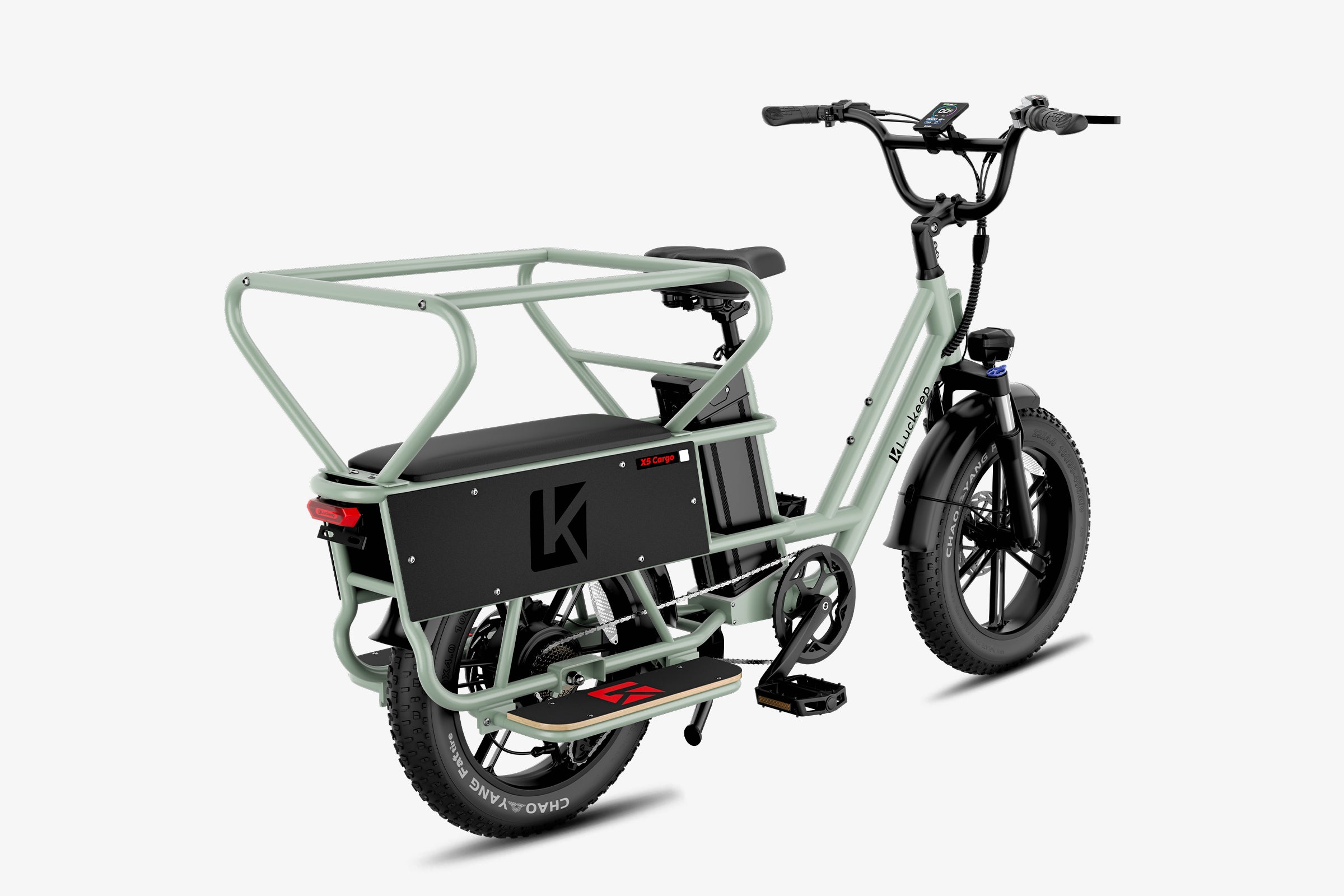

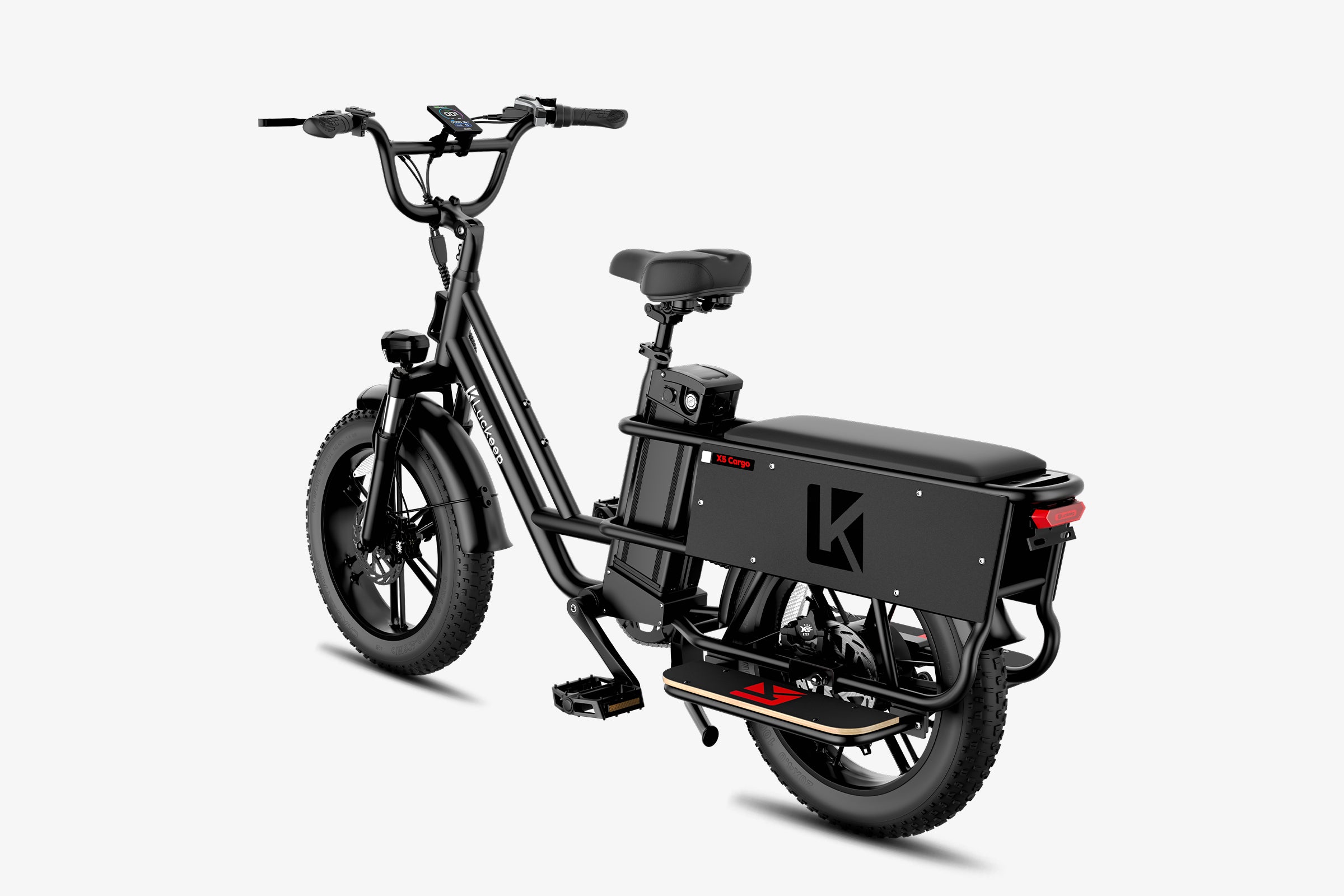

Luckeep X5 lite - combo
Versatile, family-ready cargo ebike
1400W
Peak Motor
28 MPH
Top Speed
70 Miles
Max Range
20 x 4"
Fat Tires
Go Further, Carry More. From daily commutes to weekend tasks, the Luckeep X5 Lite combines the utility of a cargo bike with the ease of electric power. It’s not just about getting there—it’s about getting it all done, your way.
UL Certified
Safety Certified in Accordance with UL 2849
Fast & Free Shipping
Shipping fees and tax are covered by Luckeep and will be completed by FedEx throughout the United States. Once the order is shipped, a shipment confirmation email and shipment tracking will be sent to your email address. ( We DO NOT ship to PO BOXES or APO.) It may take 2-5 days to deliver. Learn More
30 Day Risk Free Trial
We offer a 30-day trial period for all our brand new Ebike products. If you're not satisfied with the product, Luckeep's return policy allows you to return it within 30 days of receipt. However, to qualify for this, your product must be free of wear, dirt, and the mileage on the odometer should be less than 10 miles. Learn More
1 Year Warranty
All Luckeep ebikes are included in the 1-year all-inclusive warranty provided by our manufacturer for the original owner in case of all manufacturing defects. The warranty service does not include free accessories and batteries). After the initial owner receives the product, he begins to enjoy a 2-year warranty period. Learn More
Customer Support Service: +1 (323) 448-7808 support@luckeepbike.com
Luckeep X5 lite - combo
| Model | Luckeep X5 Lite | Luckeep X1 Pro |
| Peak Motor | 1400W | 1200W |
| Top Speed | 28MPH | 28MPH |
| Battery | 20AH(960WH) | 14AH(672WH) + 19AH(912WH) |
| Torque Sensor | No | No |
| Full Suspension | No | Yes |
| Max Range | 70 miles | 100-120 miles |
| Frame | Step-thru | Step-thru |
| Foldable | No | Yes |
| Rider Height | 5'2" - 6'3" | 5'4" - 6'4" |
| Max Load | 440 lbs | 440 lbs |
| Weight | 100 lbs | 81 lbs |
| Tire |
20x4.0" Chaoyang high-end, Fat tire |
20x4.0 Chaoyang high-end, Fat tire |
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
Shipping Information
Shipping fees and tax are covered by Luckeep and will be completed by FedEx throughout the United States. Once the order is shipped, a shipment confirmation email and shipment tracking will be sent to your email address. ( We DO NOT ship to PO BOXES or APO.) It may take 2-5 days to deliver. Learn More
30 Day Risk Free Trial
We offer a 30-day trial period for all our brand new Ebike products. If you're not satisfied with the product, Luckeep's return policy allows you to return it within 30 days of receipt. However, to qualify for this, your product must be free of wear, dirt, and the mileage on the odometer should be less than 10 miles. Leaen More
1 Year Warranty
All Luckeep ebikes are included in the 1-year all-inclusive warranty provided by our manufacturer for the original owner in case of all manufacturing defects. The warranty service does not include free accessories and batteries). After the initial owner receives the product, he begins to enjoy a 1-year warranty period. Learn More
Customer Support
If you have any questions regarding products, services, orders, or various types of support, please feel free to contact us.
- Monday-Friday: 4pm-11pm PST
FAQ’s
Typically, our product manual can address most of your concerns, but you can still browse our FAQs or subscribe to our YouTube channel for more detailed video explanations.
Why Luckeep X5 Lite
Whether you're running errands, carrying gear, or just cruising with confidence, the Luckeep X5 Lite Cargo Ebike is engineered to make heavy-duty riding effortless. With a powerful 1400W peak motor, 70-mile range, and rugged fat tires, this eBike delivers utility, power, and smooth handling for city streets and beyond.

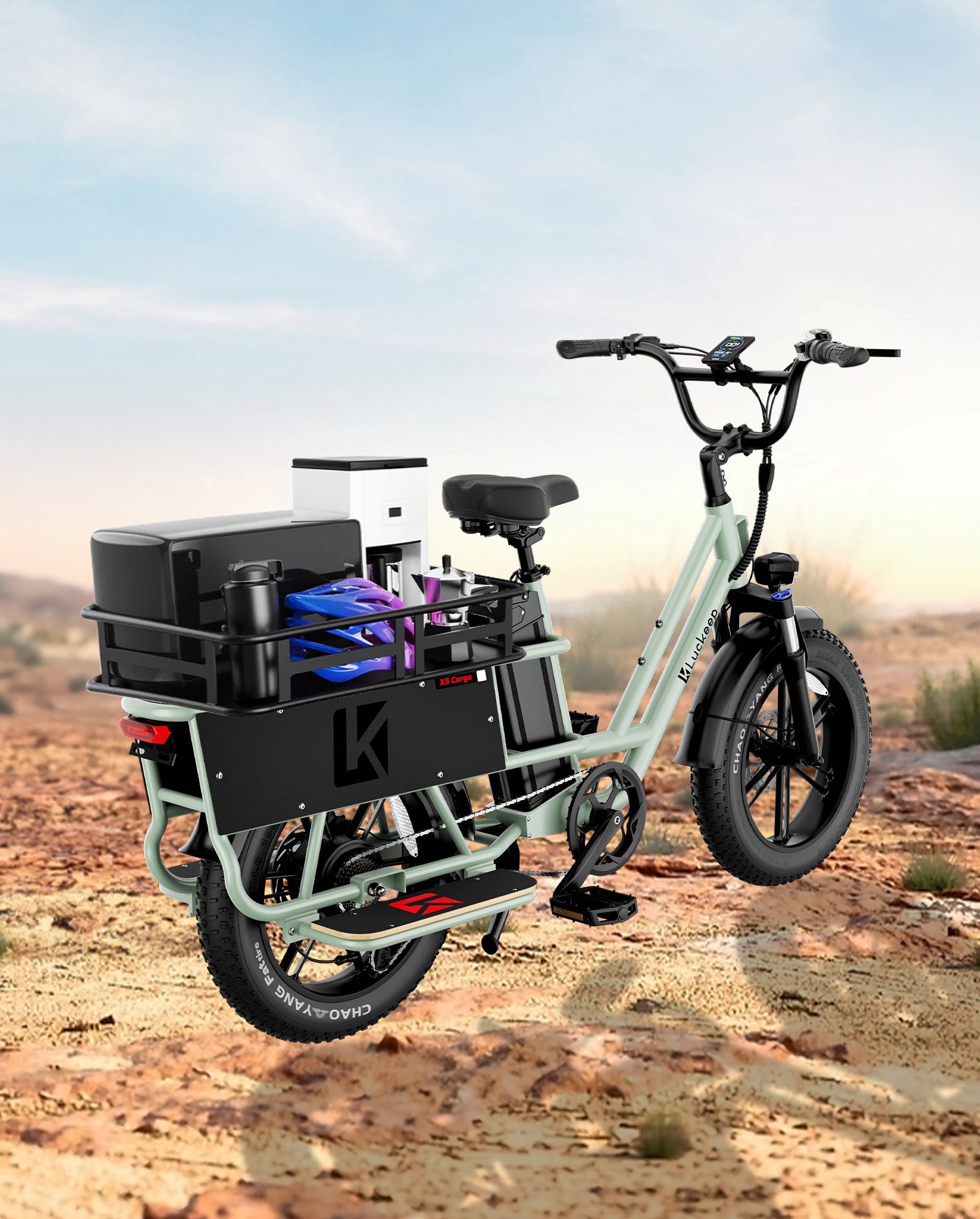

Ready to Carry
Built on a durable iron step-through frame with a 440 lb weight limit, the X5 Lite is your ideal urban workhorse—strong, balanced, and efficient.
440lb Carrying Capacity
High-Torque Motor
The 750W sustained (1400W peak) rear hub motor with 80Nm torque provides responsive acceleration and smooth cruising, even when fully loaded.
1400W Peak Motor
FEATURES
Discover Luckeep X5 Lite
The Power to Get Anywhere
Ride up to 70 miles with pedal assist thanks to the UL 2849-compliant 960Wh battery—ideal for long commutes or delivery routes. Fast charging in 6–7 hours with a UL-certified 3A charger.
Hydraulic Disc Brakes
Front and rear 180mm hydraulic disc brakes ensure safe, quick stops even when you're carrying cargo.
20" X4.0" Fat Tires
The 20" x 4.0" fat tires provide exceptional grip and stability on both rough terrain and smooth paths, ensuring a comfortable ride across a variety of surfaces.
3.5" VA display with NFC unlock
The SW-K618 3.5” VA display offers a clear, high-contrast interface, ensuring excellent visibility in all lighting conditions—plus built-in NFC unlock for modern security.

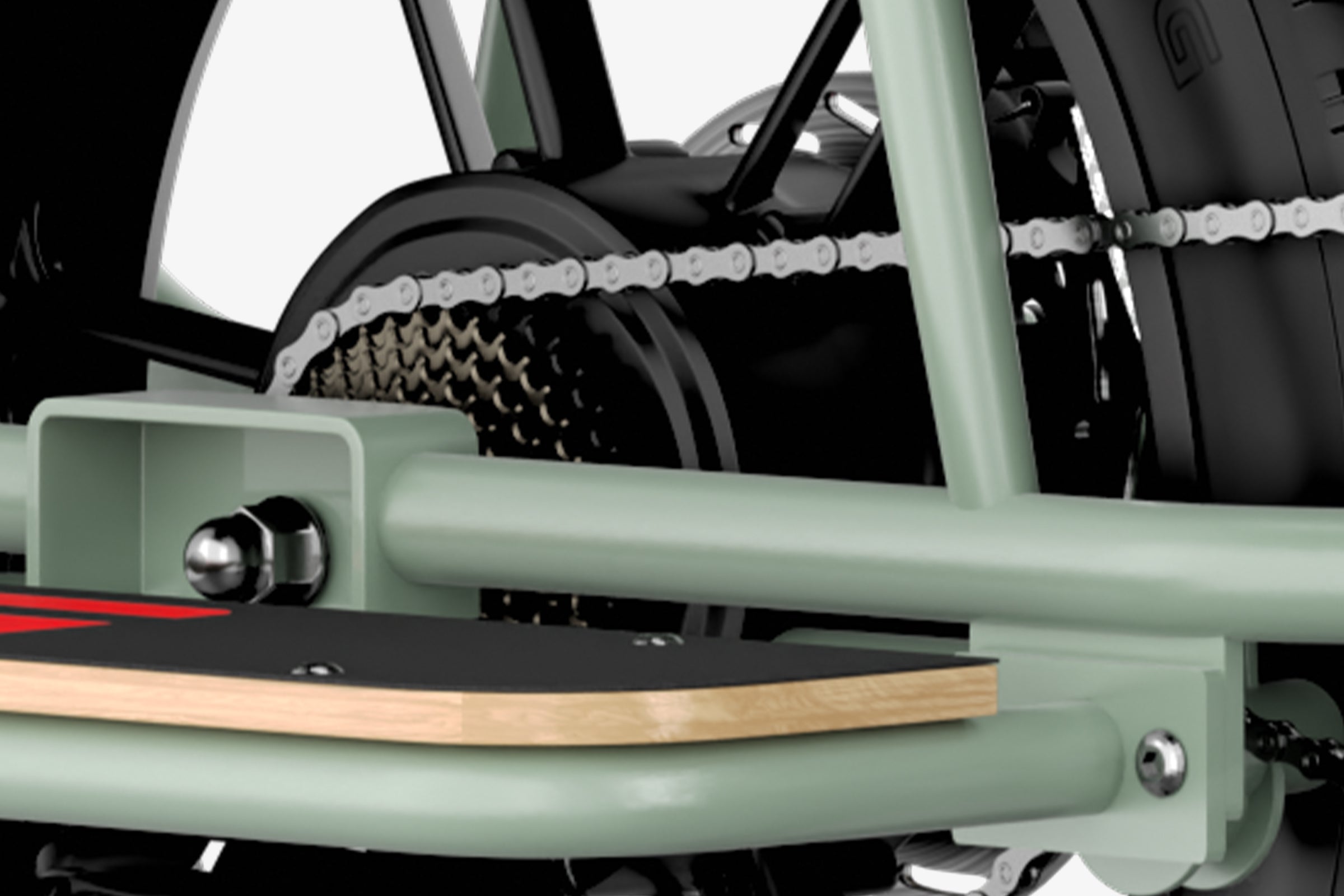

Shimano 7-speed
The Shimano 7-speed transmission provides smooth and precise shifting, offering versatility for various riding conditions, from flat roads to uphill climbs.
Ride Safely
The bright headlight will illuminate the way ahead for you, providing you with more safety and convenience. In addition, the integrated taillight with turn signal can let vehicles, pedestrians and other cyclists know your next move.
Technical Specifications
General Info
- MODEL: Luckeep X5 Lite Cargo Ebike
- IDEAL USE: Cargo Ebike
- RANGE: 50 miles on throttle mode, 70 miles on pedal assist mode
- SPEED: Up To 28 MPH on Throttle
- WEIGHT: 100 lbs (Battery Included)
- TOTAL WEIGHT LIMIT: 440 lbs
- RIDER HEIGHT: 5'2"-6'3"FT
- PEDAL ASSIST: 5 levels
Frameset
- FRAME: iron
- FORK: Hydraulic Suspension Fork with Adjustable& lockout
- FRAME STYLE: Step Through
Wheelset
- RIM: Aluminum Alloy
- SPOKES: Aluminum Alloy
- TUBES: Butyl Rubber, Schrader Valve
- TIRES: 20x4.0" Puncture Resistant Fat Tire
Ebike System
- THROTTLE: Twist Throttle with Cruise Control
- MOTOR: 1400w (peak), 750w (sustained), 48V Brushless Rear Hub Motor with 80Nm
- DISPLAY: LCD 3.5" Smart Easy Read Color Display with NFC Unlock
- BATTERY: Removable Internal Lithium-ion 48V 20AH (960Wh), UL 2849 Compliant
- SENSORS: Speed Sensor, Brake Sensor
- CHARGER: UL 1310 Certification 3A Fast Charger, 6-7 Hour Charging Time
- LIGHTS: Headlight and Taillight with Turn Signals & Brake Light
- BRAKES: F & R Hydraulic Disc Brakes, 180mm Rotors
- Controller: 48V 25A Frame-integrated Controller
Drivetrain
- BOTTOM BRACKET: Square Taper, Sealed, Speed Sensor
- PEDALS: 9/16"
- REAR DERAILLEUR: 7 Speed Shimano Rear Derailleur
- CASSETTE: Shimano 7-Speed
- SHIFT LEVER: 7 Speed Trigger
Included in the Box
X5 Lite
User Manual
Charger
Battery
NFC Unlock
Toolkit Box
About Luckeep X5 Lite
To learn more about Luckeep electric bicycles, please browse our FAQs.
What is the weight capacity of the X5 lite?
The payload capacity of X5 lite is 440 lbs (including the weight of rider and cargo).

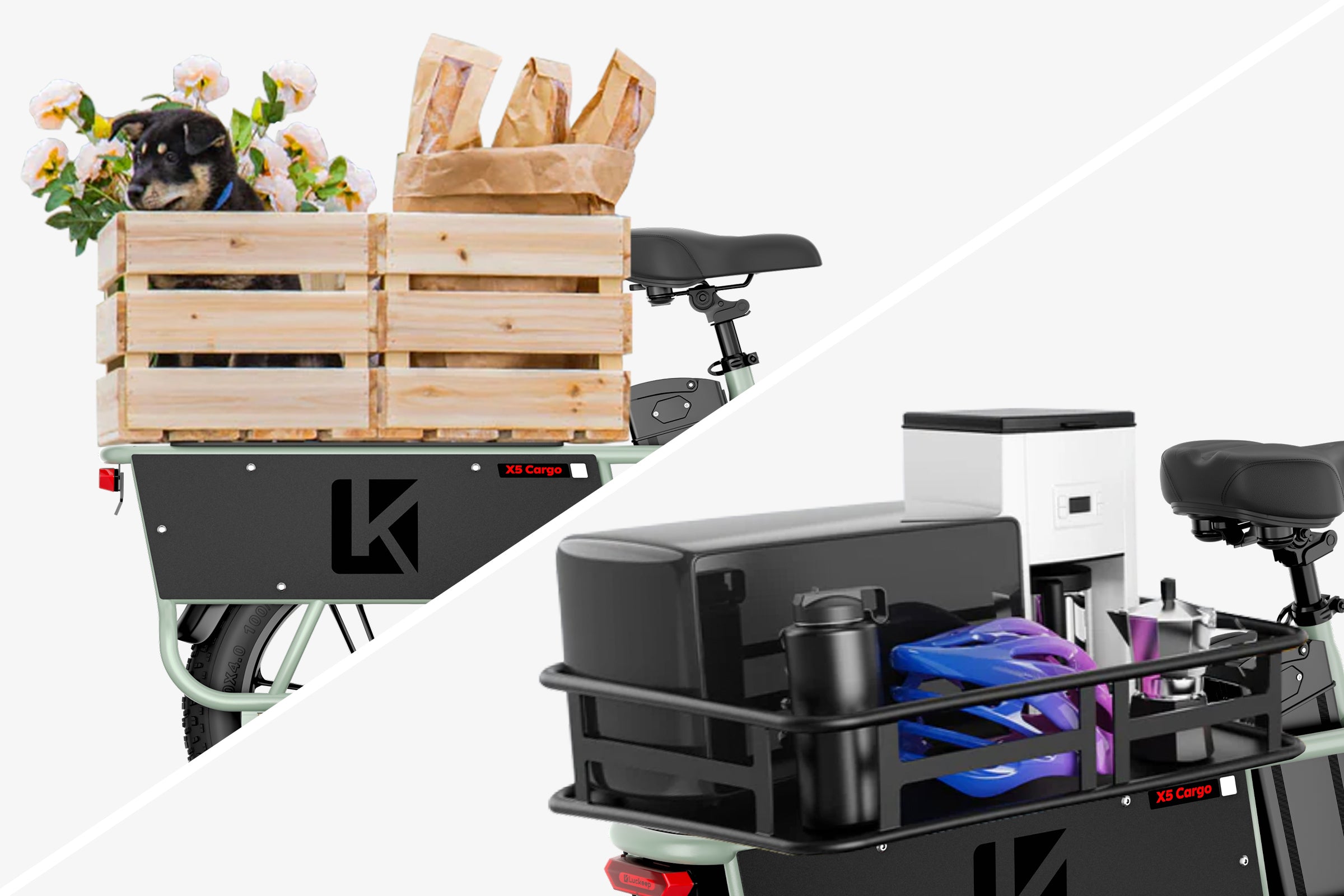

Are there any accessories available for X5 lite?
X5 Lite accessories include rear basket, front basket and Child safety fence. There are no luggage bags or child seats.
What kind of cargo can the X5 lite carry?
X5 Lite can carry a wide variety of cargo, including camping gear, groceries, shopping bags, and sports equipment. It can also carry your child or pet with a safety seat.
Do I need a special license to ride an E-Bike?
Luckeep E-bikes are designed under US regulations. Therefore riders will not need any special license to ride our bikes. This is true only of Luckeep branded bikes and does not carry over to all other types of electric bikes.
Have Luckeep's electric bikes been safety certified?
All Luckeep electric bikes for sale have passed UL 2849 international certification and undergone tens of thousands of laboratory tests to ensure that every Luckeep electric bike leaving the factory has the best performance.
