2000W
Peak Motor
37.5Mph
Top Speed
80 Miles
Max Range
1040Wh-2080Wh
Battery Capacity
20 x 4"
Fat Tires
5'2"-7'2"
Recommended Height

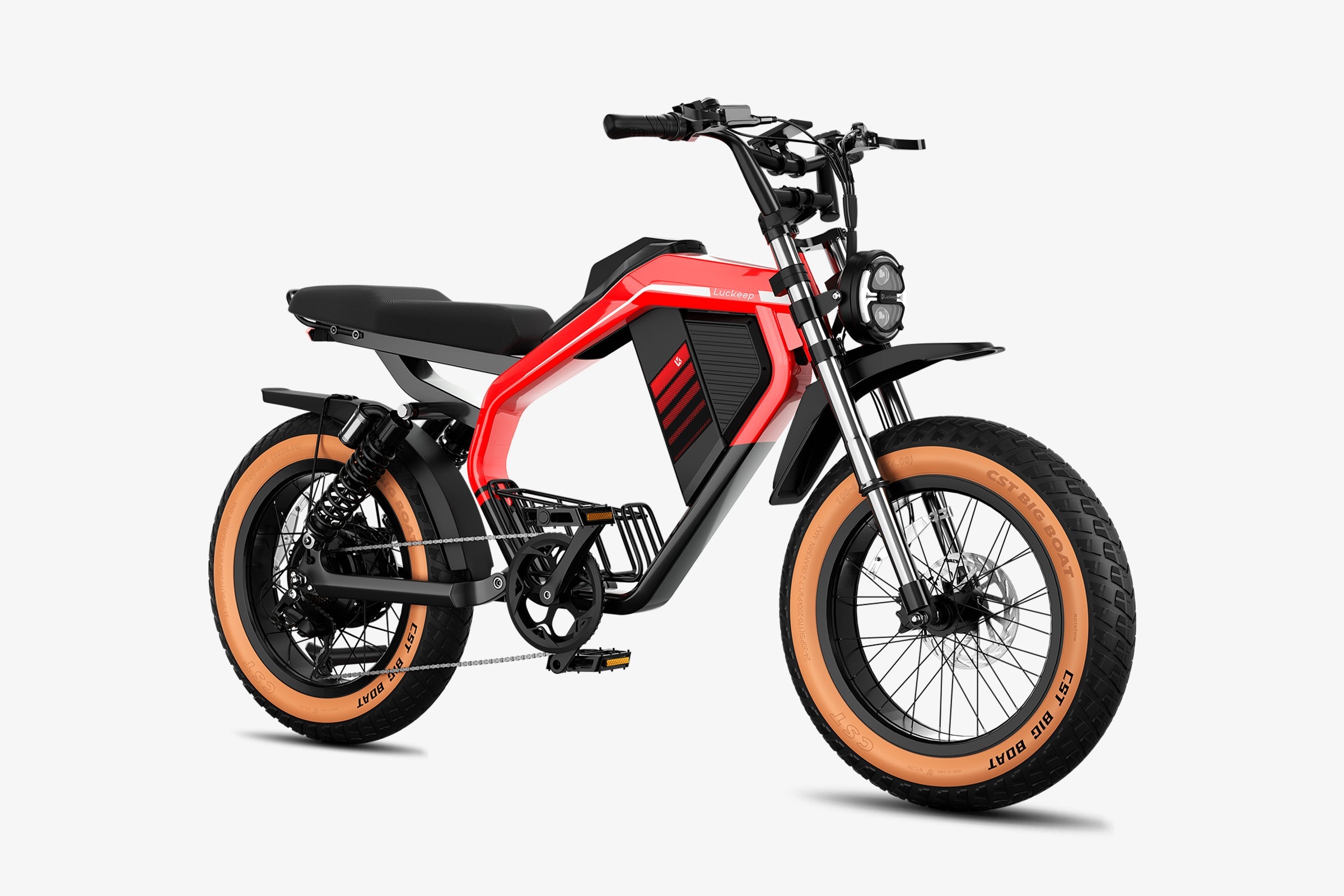

Luckeep M5 Max
Full suspension fat tire electric motorbike
M5 MAX are now available for pre-order. Estimated shipping date: April 25th. Additional batteries will arrive in late May.
Popular upgrades
Air Pump
$69.00
Cycling Sunglasses
$39.00
Cable Lock
$39.00
2000W
Peak Motor
37.5Mph
Top Speed
80 Miles
Max Range
1040Wh-2080Wh
Battery Capacity
20 x 4"
Fat Tires
5'2"-7'2"
Recommended Height
UL Certified
Safety Certified in Accordance with UL 2849
Fast & Free Shipping
Shipping fees and tax are covered by Luckeep and will be completed by FedEx throughout the United States. Once the order is shipped, a shipment confirmation email and shipment tracking will be sent to your email address. ( We DO NOT ship to PO BOXES or APO.) It may take 2-5 days to deliver. Learn More
30 Day Risk Free Trial
We offer a 30-day trial period for all our brand new Ebike products. If you're not satisfied with the product, Luckeep's return policy allows you to return it within 30 days of receipt. However, to qualify for this, your product must be free of wear, dirt, and the mileage on the odometer should be less than 10 miles. Learn More
1 Year Warranty
All Luckeep ebikes are included in the 1-year all-inclusive warranty provided by our manufacturer for the original owner in case of all manufacturing defects. The warranty service does not include free accessories and batteries). After the initial owner receives the product, he begins to enjoy a 1-year warranty period. Learn More
Customer Support Service: +1 (323) 448-7808 support@luckeepbike.com
Luckeep M5 Max
| Version | Luckeep M5 Max | Luckeep M5 |
| Motor | 1500w brushless DC motor | 1000w brushless DC motor |
| Top Speed | 37.5 mph | 32 mph |
| Battery | 52v 20ah (removeable) | 48v 15ah (removeable) |
| Torque | 120 Nm | 90 Nm |
| Range | 80 miles | 60 miles |
| Display |
3.5" VA display with NFC
|
3.5" VA display with NFC
|
| Front Suspension | upside-down fork | spring oil fork |
| Rear Shock | 200L 1200LBS COIL | 200L 1200LBS COIL |
| Rider Height | 5'2"-7'2" | 5'2"-7'2" |
| Max Load | 400 lbs | 400 lbs |
| Tire | 20 x 4" fat tire | 20 x 4" fat tire |
| Brake | hydraulic disc brake 180*2.3mm | mechanical disc brake 180*2.3mm |
| Weight | 102 lbs in total with the battery |
94.6 lbs in total with the battery
|
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
Shipping Information
Shipping fees are covered by Luckeep and will be completed by FedEx throughout the United States. Once the order is shipped, a shipment confirmation email and shipment tracking will be sent to your email address. ( We DO NOT ship to PO BOXES or APO.) It may take 2-7 days to deliver. Learn More
30 Day Risk Free Trial
We offer a 30-day trial period for all our brand new Ebike products. If you're not satisfied with the product, Luckeep's return policy allows you to return it within 30 days of receipt. However, to qualify for this, your product must be free of wear, dirt, and the mileage on the odometer should be less than 10 miles. Leaen More
1 Year Warranty
All Luckeep ebikes are included in the 1-year all-inclusive warranty provided by our manufacturer for the original owner in case of all manufacturing defects. The warranty service does not include free accessories and batteries). After the initial owner receives the product, he begins to enjoy a 1-year warranty period. Learn More
Customer Support
If you have any questions regarding products, services, orders, or various types of support, please feel free to contact us.
- Monday-Friday: 4pm-11pm PST
FAQ’s
Typically, our product manual can address most of your concerns, but you can still browse our FAQs or subscribe to our YouTube channel for more detailed video explanations.
Power & Efficiency in Perfect Balance
The M5 Max is the first groundbreaking creation from the Luckeep MAXPOWER Research Lab. Powered by a 52V 2000W Peak high-performance rear motor, it delivers intense acceleration and unstoppable momentum. A built-in torque sensor precisely detects your pedaling force, providing up to 120 N·m of responsive, efficient torque—ensuring every ride is longer, smoother, and more exhilarating.
1500W DC Hub Motor
120 N·m of Torque
Conquer every path, no matter the terrain.
As electric bikes become more common in daily life, Luckeep stays true to its original mission: giving you the freedom to ride anytime, anywhere, and explore without limits. That’s why the M5 Max is built not just for speed, but for the wild—featuring an advanced suspension system with an inverted front fork and dual rear spring shock absorbers. Whether you're navigating rocky trails or rugged backroads, this powerhouse is engineered to smooth out every bump and elevate every adventure.
1200 lbs Dual Rear Shock Absorbers
Inverted Spring Hydraulic Front Fork
Ride Longer. Explore Farther.
The Luckeep M5 MAX offers an optional second battery, boosting total capacity up to 40Ah and extending your range to an impressive 160 miles. With this powerful setup, range anxiety becomes a thing of the past. Whether you're cruising through city streets or exploring off-the-grid trails, the M5 MAX gives you the confidence to go the distance and enjoy every moment of the ride.
Supports installation of a second battery (optional purchase required)
160 Miles Max Range (optional purchase required)
Discover Luckeep M5 Max
1500W DC Hub Motor
With a peak power of 2000W and 120N.m torque, the motor delivers rapid acceleration, effortless hill climbs, and a top speed of 37.5 mph, ensuring a thrilling and powerful riding experience.
Battery Capacity
The 52V 20Ah removable battery provides up to 80 miles of range. Add a second 20Ah battery to double the capacity to 40Ah, extending the range to an incredible 160 miles for all-day riding.
Inverted Front Fork
The advanced inverted front fork enhances shock absorption and stability, reducing front-end dive for a smoother ride on rugged terrain and improving control during high-speed or off-road riding.
Dual Rear Oil Shock Absorber
The rear coil oil shock absorber minimizes impact from rough roads, offering excellent damping performance for a comfortable and controlled ride, whether on city streets or challenging trails.
20x4" Fat Tires
Wide 20" x 4.0" fat tires provide superior traction, shock absorption, and stability on various terrains, including sand, snow, gravel, and mud, ensuring a confident and smooth ride.
Moto-Style Round Headlight
The high-lumen, retro-style round headlight not only enhances visibility for night riding but also gives the M5 Max a stylish, motorbike-inspired look that stands out on the road.
Hydraulic Dual Brakes
Equipped with hydraulic disc brakes and 180mm rotors, the M5 Max delivers powerful and responsive braking, ensuring safety and control in all conditions, from steep descents to wet roads.
Technical Specifications
General Info
- MODEL: Luckeep M5 Max Electric Motorbike
- IDEAL USE: Off-Road/Commute
- RANGE: 80 miles
- SPEED: 37.5 MPH
- WEIGHT: 102 lbs (Including battery weight)
- TOTAL WEIGHT LIMIT: 400 lbs
- RIDER HEIGHT: 5'2"-7'2"FT
- PEDAL ASSIST: 5 levels
Frameset
- FRAME: 6061 Aluminum Alloy
- FORK: Spring suspension alloy fork
- REAR SUSPENSION: 200L 1200LBS COIL
- SADDLE MATERIAL: Foam + Leather
Wheelset
- RIM: Aluminum Alloy
- SPOKES: Yes
- TUBES: Rubber
- TIRES: 20x4" Puncture Resistant Fat Tire
Ebike System
- THROTTLE: Full Twist Throttle with Cruise Control
- MOTOR: 1500w, 52V DC Hub Motor 120Nm
- DISPLAY: 3.5" VA display with NFC
- BATTERY: 52V 20AH (1040Wh) lithium battery
- SENSORS: Speed Sensor
- CHARGER: 58.8V 3A Smart Charge, Charging time is about 5-6 hours
- LIGHTS: Front LED light, rear light with brake signal and turn signal blinker.
- BRAKES: Hydraulic Disc Brakes, 180mm Rotors
Drivetrain
- BOTTOM BRACKET: Square Taper, Sealed, Speed Sensor
- PEDALS: 9/16"
- REAR DERAILLEUR: 7 Speed Shimano Rear Derailleur
- CASSETTE: Shimano 7-Speed
- SHIFT LEVER: 7 Speed Trigger
Included in the Box
Luckeep M5 Max
User Manual
Battery Charger
Battery Pack
Headlight
Accessories
About Luckeep M5 Max
To learn more about Luckeep electric bicycles, please browse our FAQs.
Does the 1500W motor affect battery life, especially during high-speed or off-road rides?
The high-performance 1500W motor is optimized for efficiency. While higher power usage reduces range slightly during intense rides, the 52V 20Ah battery is engineered to balance power and endurance, offering up to 80 miles under mixed riding conditions.
How does the 120N.m torque improve performance in everyday use?
The 120N.m torque ensures exceptional acceleration and makes hill climbing effortless, even with heavier loads or challenging terrains, giving riders more confidence in both urban and off-road scenarios.
Is the suspension system adjustable for different riding styles?
Yes, the inverted front fork and rear coil suspension are adjustable, allowing riders to customize the setup for maximum comfort on city commutes or enhanced stability on rugged dirt trails.
How does the M5 Max handle in wet or slippery conditions?
With 20"x4.0" fat tires for increased traction and hydraulic disc brakes featuring 180mm rotors, the M5 Max provides exceptional grip and reliable stopping power, even in rain or muddy environment
What happens if I need to replace or upgrade the battery?
The 52V 20Ah battery is removable and replaceable. Luckeep offers compatible replacement batteries, and upgrading to a higher-capacity battery is an option for extended range in the future.
Is this bike street-legal, and does it require a license to ride?
Regulations vary by location. The M5 Max is categorized as a moped-style electric bike, so in most areas, you may not need a license. However, we recommend checking local e-bike laws to ensure compliance.
What’s the difference between this model and standard e-bikes with less power?
The M5 Max’s 1500W motor, 120N.m torque, and high-capacity battery provide a significant advantage in speed, range, and terrain adaptability, making it more versatile and capable than standard e-bikes designed mainly for urban commuting.
Customer Reviews

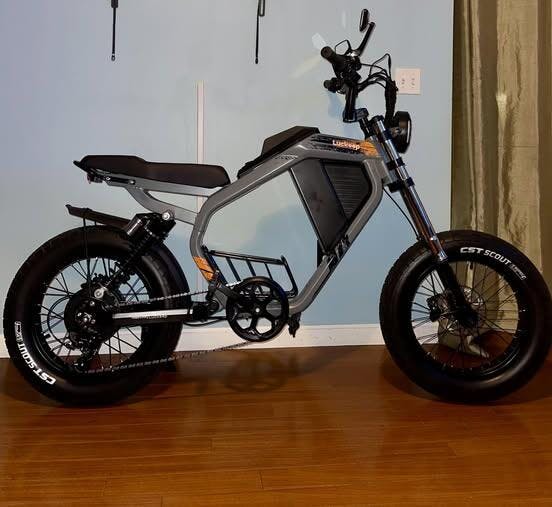

Hey Guys! Just wanted to introduce to you my M5 Max in Grey! Swap original tires for the CST scout! What you guys think?
