1400W
Peak Motor
28 MPH
Top Speed
20 x 4"
Fat Tires
70 Miles
Max Range
960Wh
Battery Capacity
5'4"-6'4"
Recommended Height
Luckeep X3
Full Suspension Electric Bike with Torque Sensor
The Luckeep X3’s full suspension absorbs shocks for a smooth, stable ride on any terrain. Its torque sensor ensures natural, responsive pedal assist, while 20” fat tires provide superior traction and control on city streets or rugged trails. Perfect for daily commutes and off-road adventures.
1400W
Peak Motor
28 MPH
Top Speed
20 x 4"
Fat Tires
70 Miles
Max Range
960Wh
Battery Capacity
5'4"-6'4"
Recommended Height
Popular upgrades
Air Pump
$69.00
Cable Lock
$39.00
Bike Cover Waterproof Outdoor
$49.00
Cycling Sunglasses
$39.00
Customer Support Service: +1 (323) 448-7808 support@luckeepbike.com
UL Certified
Safety Certified in Accordance with UL 2849
Fast & Free Shipping
Shipping fees and tax are covered by Luckeep and will be completed by FedEx throughout the United States. Once the order is shipped, a shipment confirmation email and shipment tracking will be sent to your email address. ( We DO NOT ship to PO BOXES or APO.) It may take 2-5 days to deliver. Learn More
30 Day Risk Free Trial
We offer a 30-day trial period for all our brand new Ebike products. If you're not satisfied with the product, Luckeep's return policy allows you to return it within 30 days of receipt. However, to qualify for this, your product must be free of wear, dirt, and the mileage on the odometer should be less than 10 miles. Learn More
1 Year Warranty
All Luckeep ebikes are included in the 1-year all-inclusive warranty provided by our manufacturer for the original owner in case of all manufacturing defects. The warranty service does not include free accessories and batteries). After the initial owner receives the product, he begins to enjoy a 2-year warranty period. Learn More
Luckeep X3
| Model | Luckeep X3 | Luckeep X1 Pro |
| Peak Motor | 1400W | 1200W |
| Top Speed | 28MPH | 28MPH |
| Battery | 20AH(960WH) | 14AH(672WH) + 19AH(912WH) |
| Torque Sensor | Yes | No |
| Full Suspension | Yes | No |
| Max Range | 70 miles | 100-120 miles |
| Frame | Step-thru | Step-thru |
| Foldable | No | Yes |
| Rider Height | 5'4" - 6'4" | 5'4" - 6'4" |
| Max Load | 330 lbs | 440 lbs |
| Weight | 75 lbs | 81 lbs |
| Tire |
20x4.0" Magnesium alloy integrated molded wheels |
20x4.0 Chaoyang high-end, Fat tire |
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
Shipping Information
Shipping fees and tax are covered by Luckeep and will be completed by FedEx throughout the United States. Once the order is shipped, a shipment confirmation email and shipment tracking will be sent to your email address. ( We DO NOT ship to PO BOXES or APO.) It may take 2-5 days to deliver. Learn More
30 Day Risk Free Trial
We offer a 30-day trial period for all our brand new Ebike products. If you're not satisfied with the product, Luckeep's return policy allows you to return it within 30 days of receipt. However, to qualify for this, your product must be free of wear, dirt, and the mileage on the odometer should be less than 10 miles. Leaen More
1 Year Warranty
All Luckeep ebikes are included in the 1-year all-inclusive warranty provided by our manufacturer for the original owner in case of all manufacturing defects. The warranty service does not include free accessories and batteries). After the initial owner receives the product, he begins to enjoy a 1-year warranty period. Learn More
Customer Support
If you have any questions regarding products, services, orders, or various types of support, please feel free to contact us.
- Monday-Friday: 4pm-11pm PST
FAQ’s
Typically, our product manual can address most of your concerns, but you can still browse our FAQs or subscribe to our YouTube channel for more detailed video explanations.
Why Luckeep X3
Choose the Luckeep X3 for its powerful 750W motor (1400W peak), delivering strong acceleration and effortless hill climbing. With a top speed of 28mph, you can commute faster and ride with confidence. Its 70-mile range ensures long, uninterrupted journeys, whether for daily commutes or weekend adventures.
Air, Four-bar Linkage Suspension
The Air and Four-bar Linkage Suspension system ensures superior shock absorption and stability, delivering a smoother, more comfortable ride across rugged terrain and uneven surfaces.
Torque Sensor
The torque sensor provides precise pedal-assist by measuring your pedaling force, offering smoother acceleration, better energy efficiency, and a more natural riding experience.
2.0 X 4'' Fat Tires
The Luckeep X3’s 20” x 4.0” fat tires offer excellent traction and stability on all terrains. Whether on city roads, sand, or rough trails, they ensure a smooth, controlled ride with enhanced grip and shock absorption for greater comfort and safety.
FEATURES
Luckeep X3
Luckeep X3 is a step-through full suspension e-bike with 750W motor, torque sensor, and advanced suspension for smooth rides.

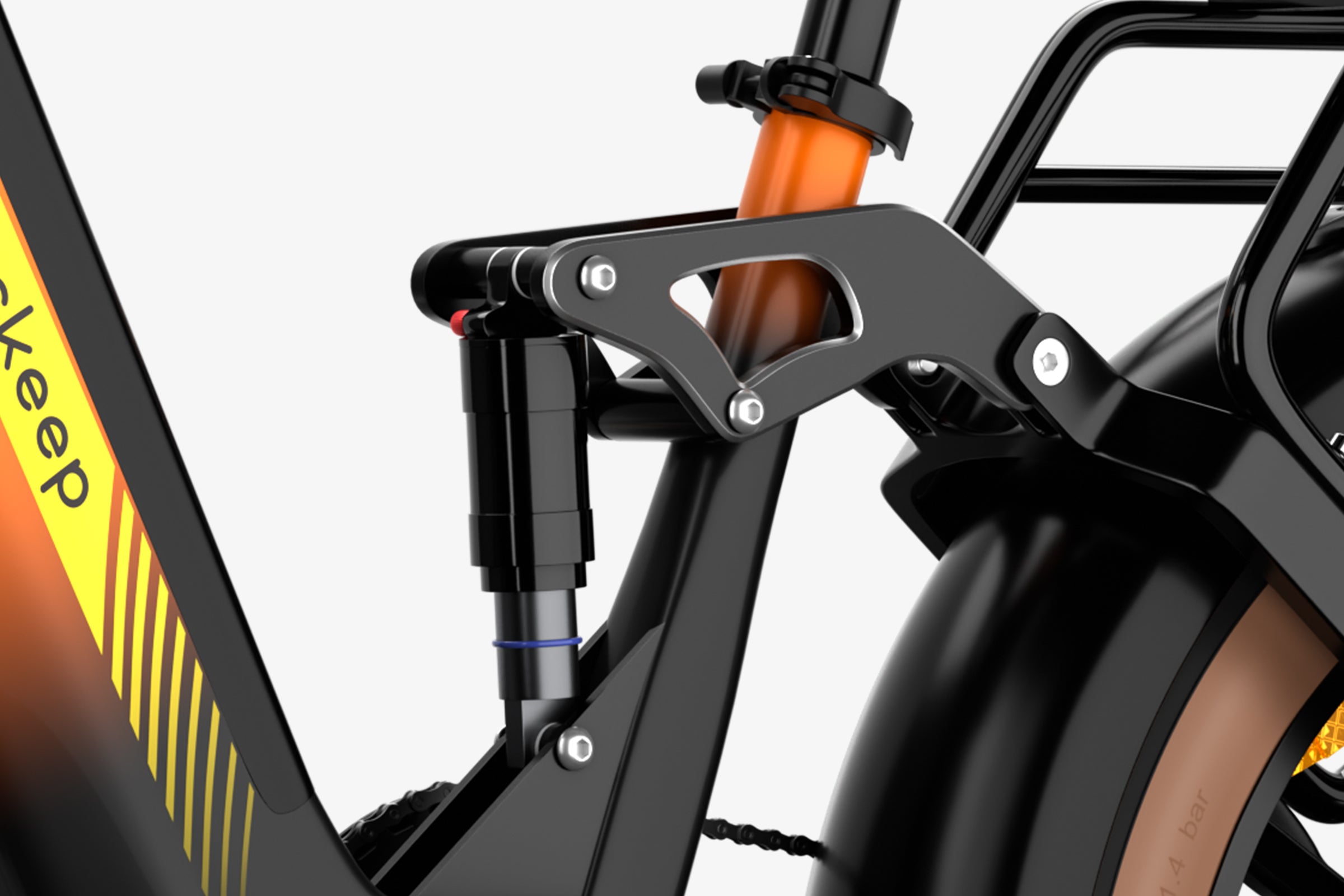

Air, Four-bar Linkage Suspension
The air suspension and four-bar linkage system deliver superior shock absorption, ensuring smooth rides even on uneven or bumpy trails and providing better control.

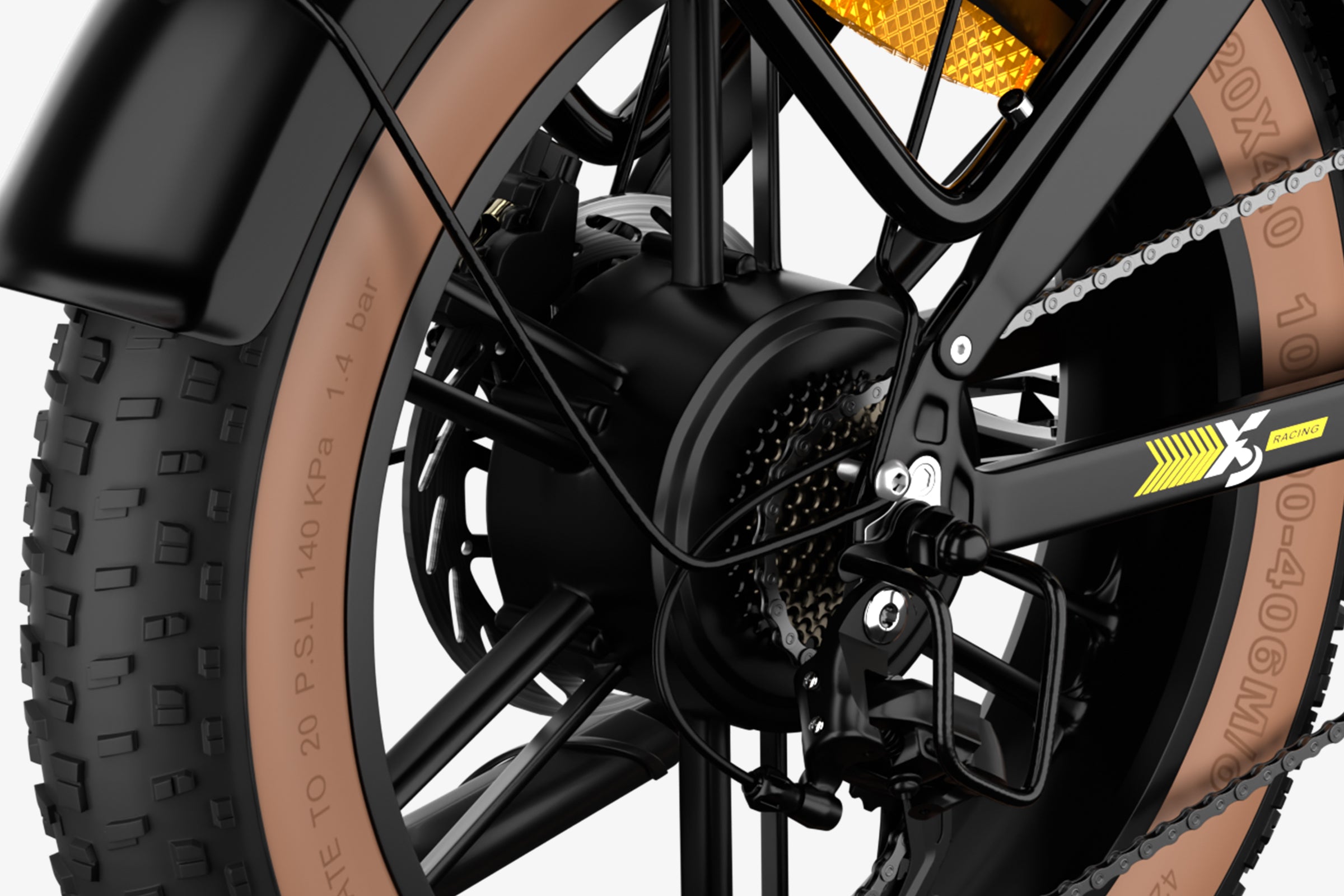

750W Brushless Rear Hub Motor
The 750W motor, with a 1400W peak, delivers consistent power and smooth acceleration, making it ideal for both daily commuting and adventurous off-road rides.

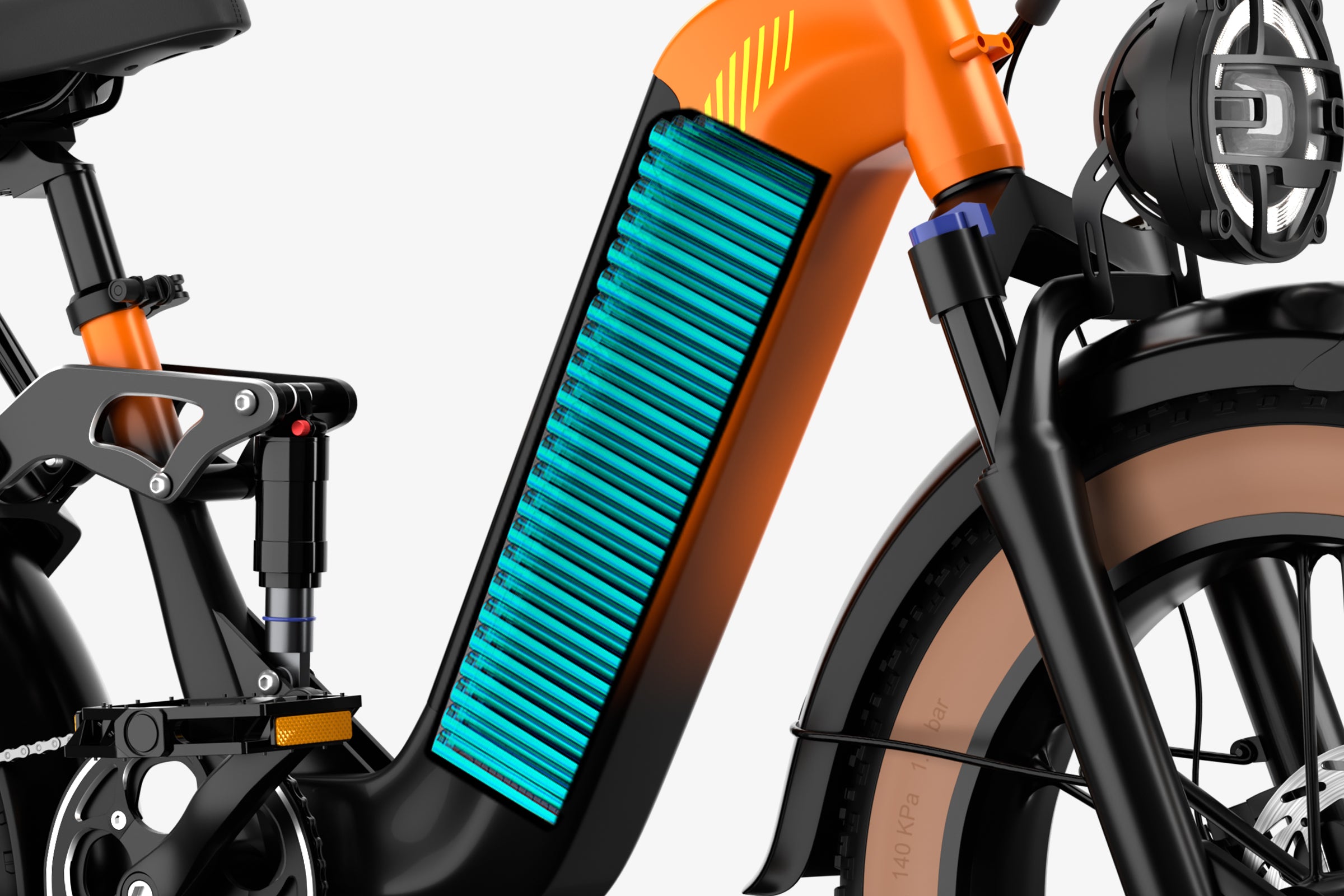

Removable Lithium-ion Battery
This high-capacity 48V 20AH(960Wh) battery offers an impressive range of up to 70 miles and is easily removable for convenient charging and storage.

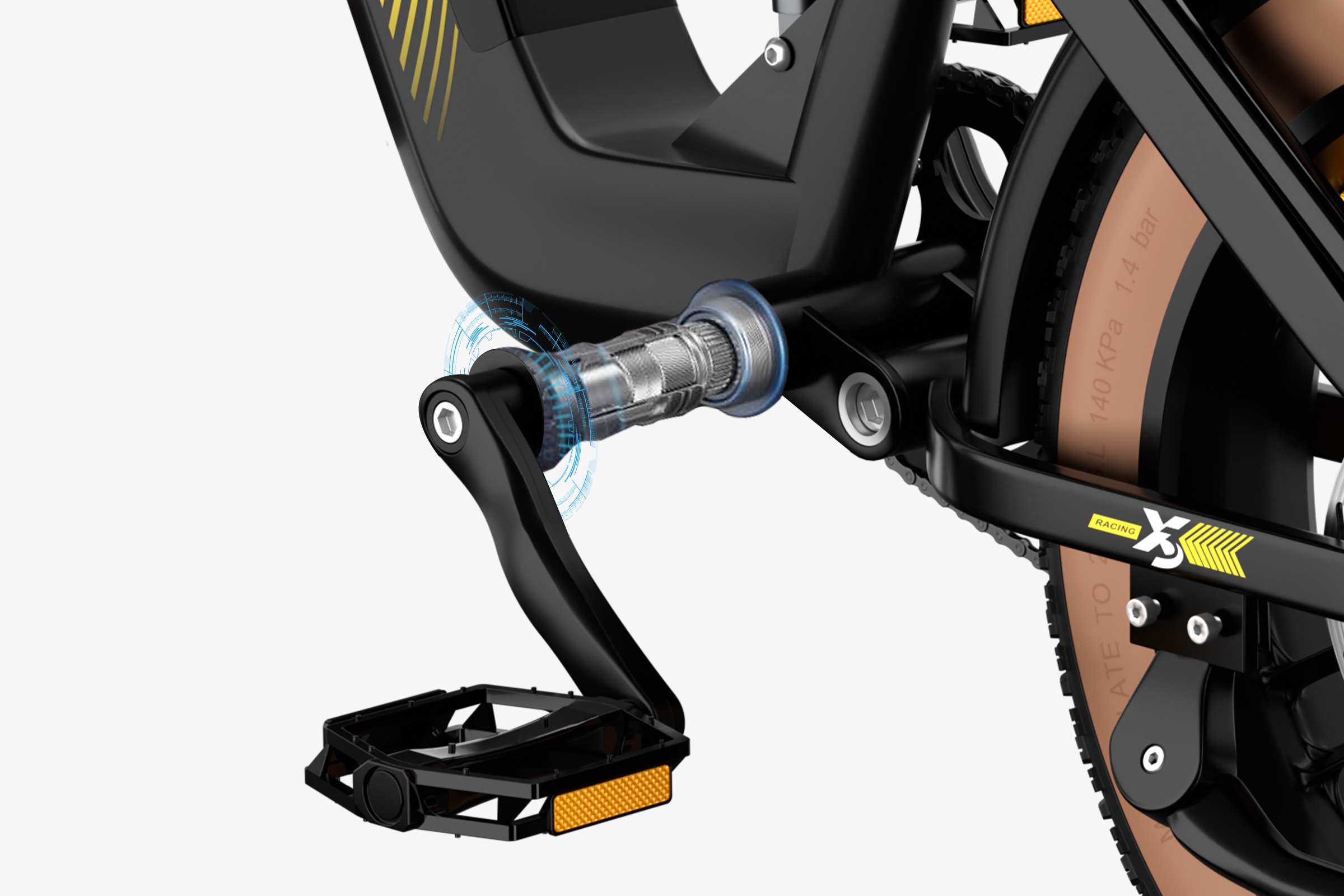

Torque Sensor
The torque sensor detects your pedaling effort, providing smooth, responsive assist while optimizing power use, conserving battery, and extending range.

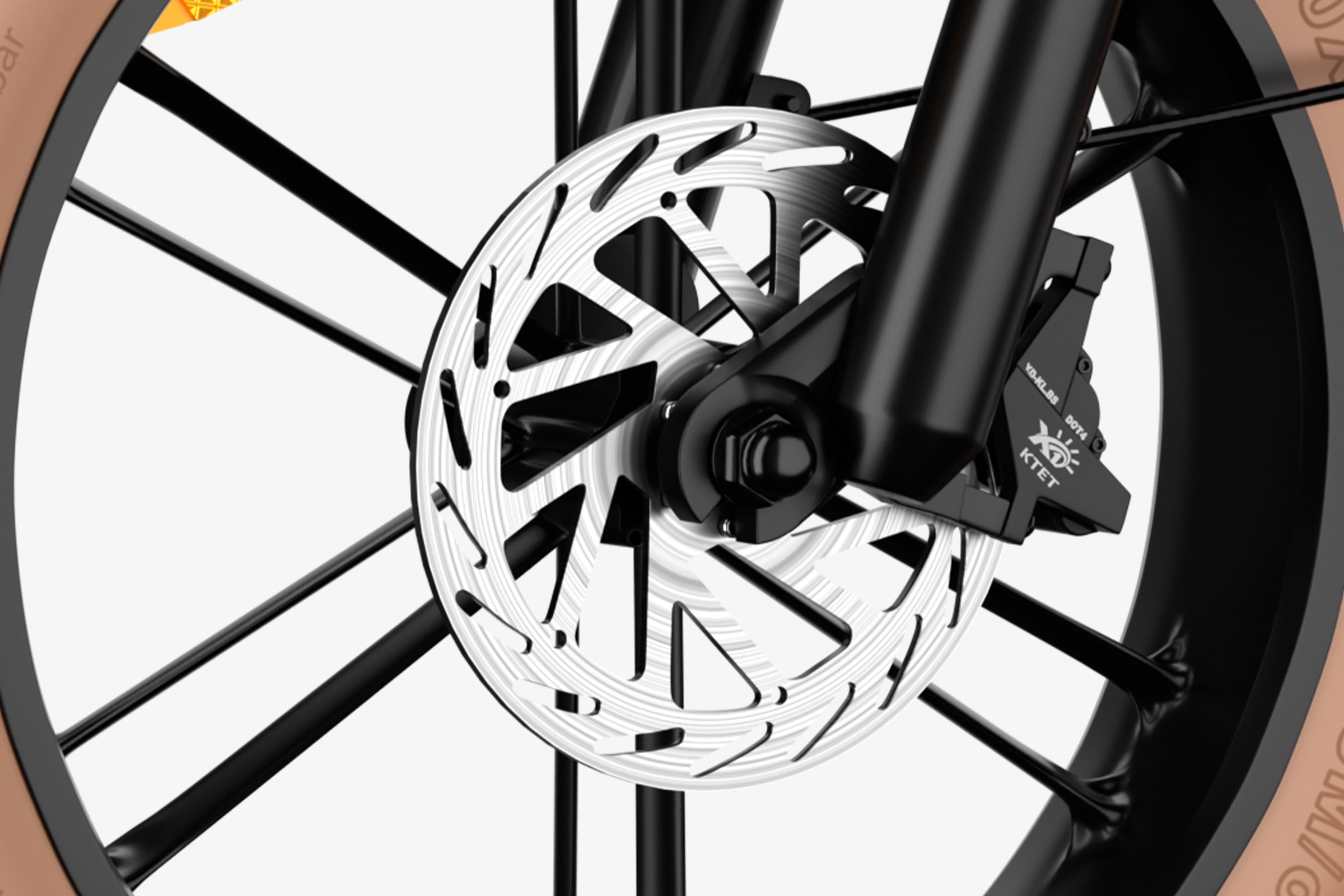

F & R Hydraulic Disc Brakes
Front and rear hydraulic disc brakes with 180mm rotors ensure strong and reliable stopping power, providing safe braking performance in all weather conditions.

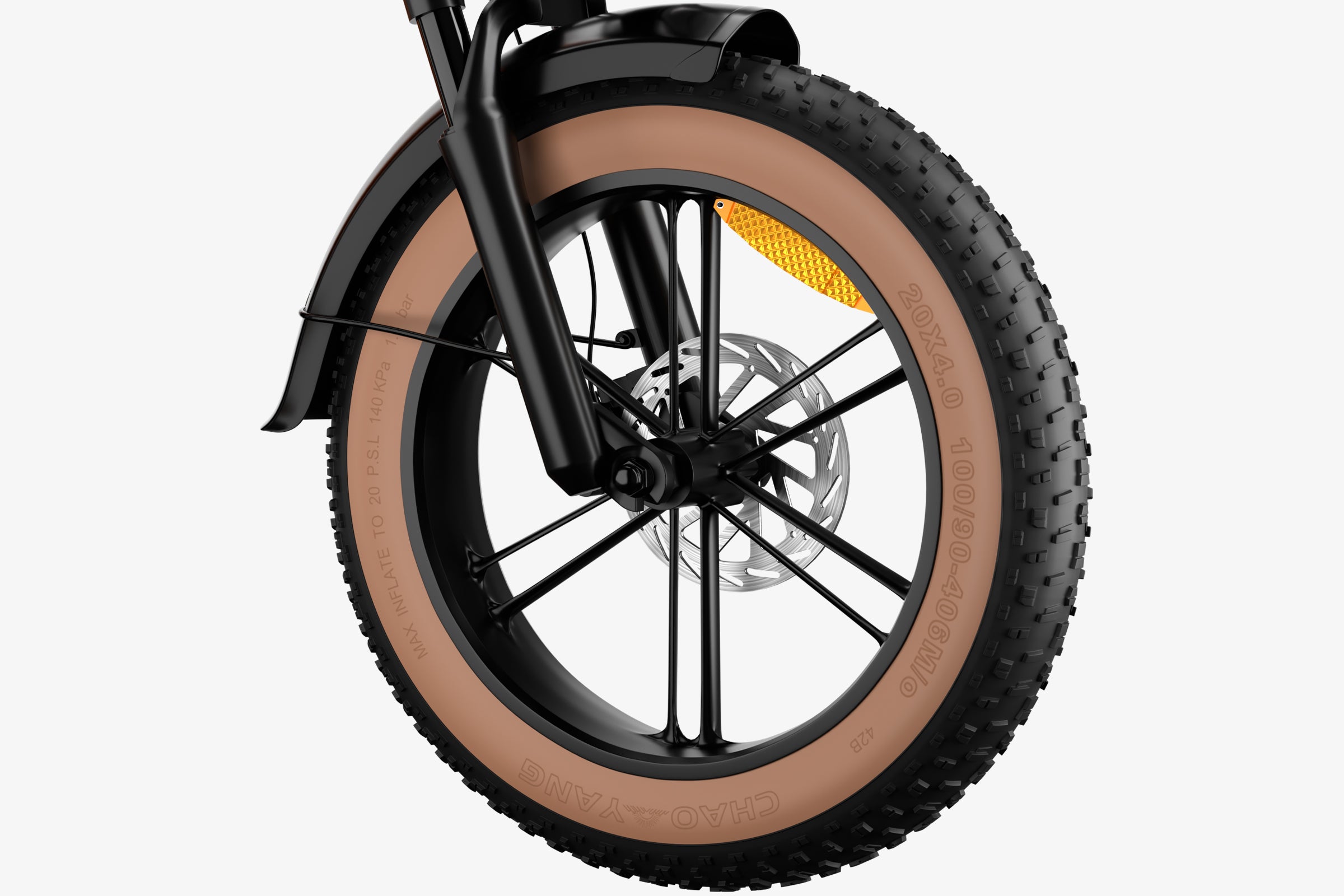

20" X4.0" Fat Tires
The 20" x 4.0" fat tires provide exceptional grip and stability on both rough terrain and smooth paths, ensuring a comfortable ride across a variety of surfaces.

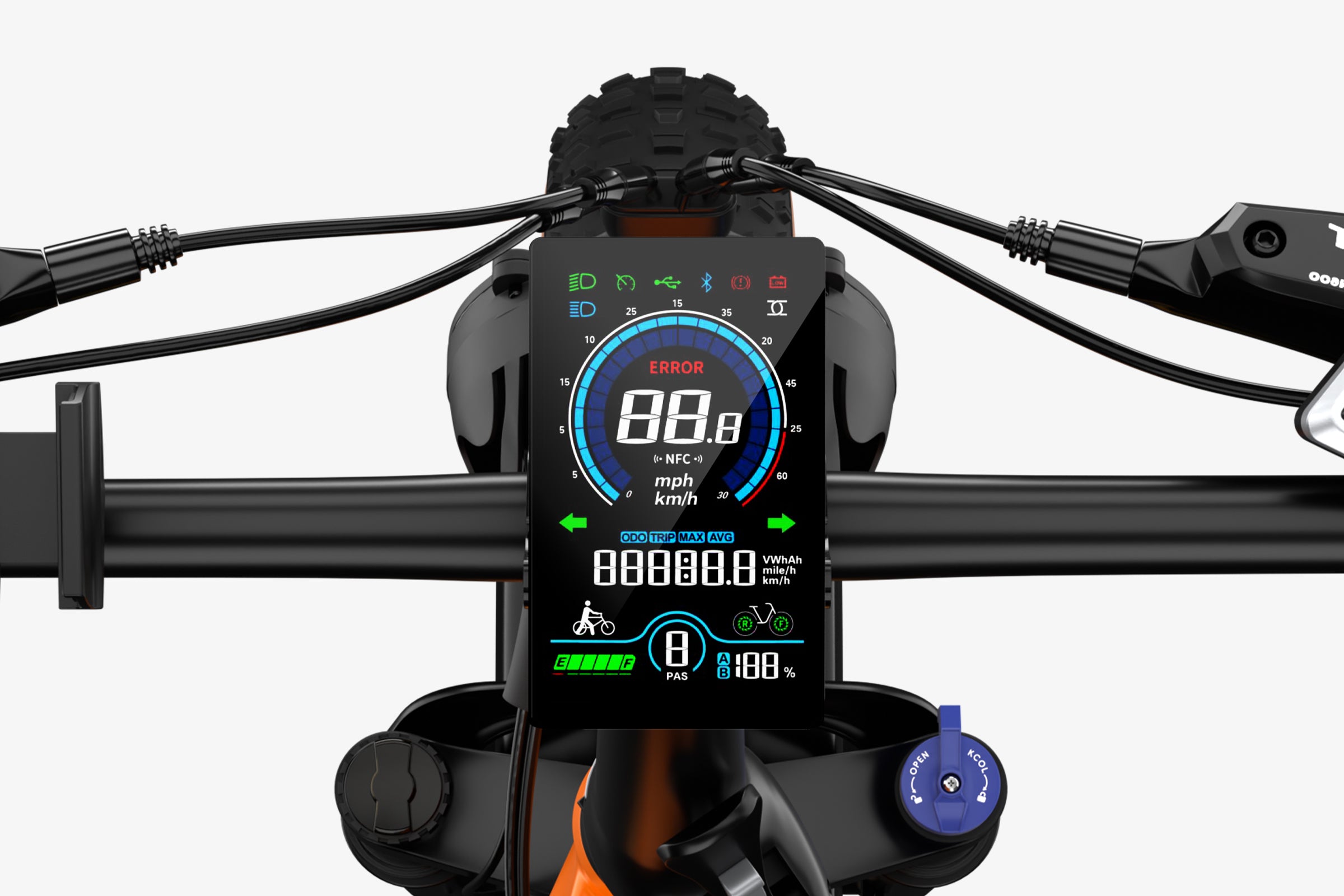

4.0" VA display with NFC&APP Control
The SW-M818 4.0” VA display offers a clear, high-contrast interface, ensuring excellent visibility in all lighting conditions. It provides real-time riding data, battery status, and speed tracking for a seamless riding experience.

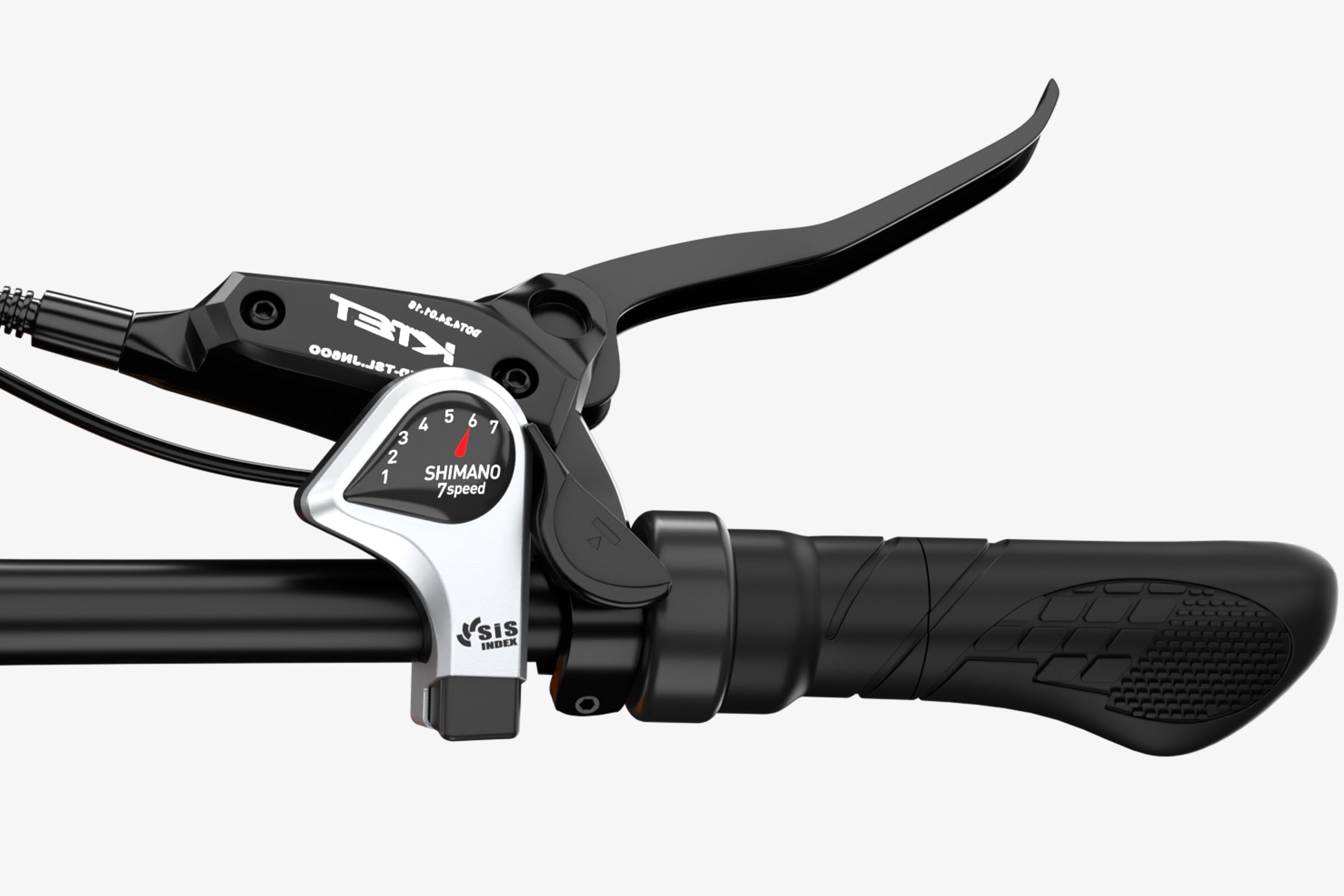

Shimano 7-speed
The Shimano 7-speed transmission provides smooth and precise shifting, offering versatility for various riding conditions, from flat roads to uphill climbs.

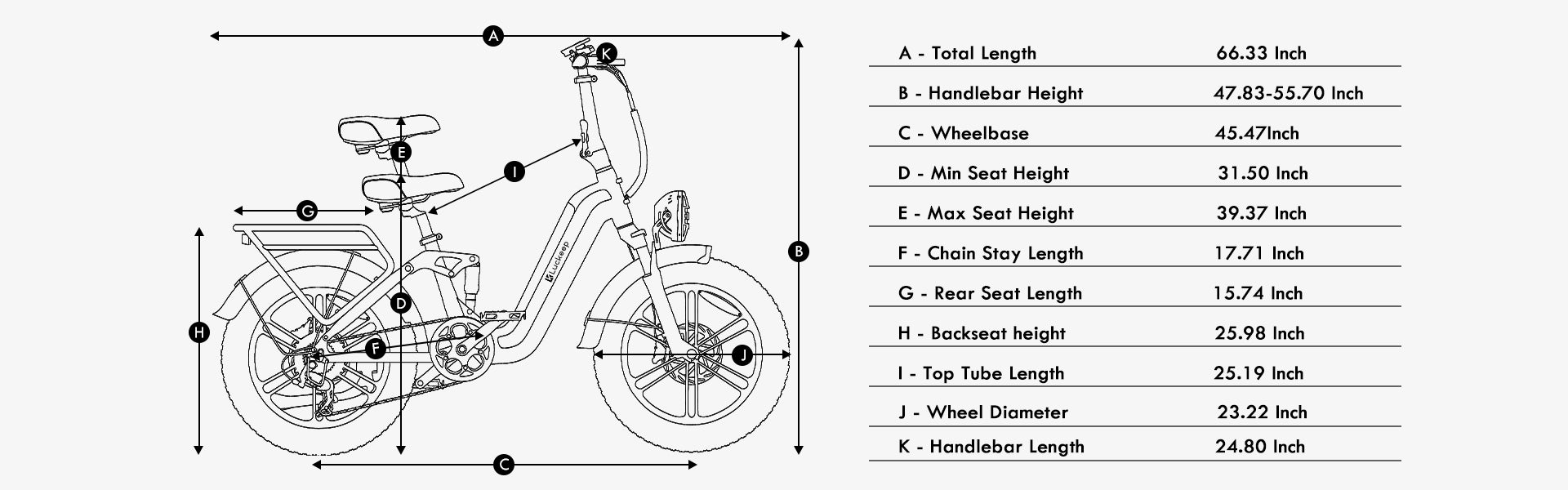

Technical Specifications
General Info
- MODEL: Luckeep X3 Full Suspension Ebike
- IDEAL USE: All-terrain&Commute
- RANGE: 40 miles on throttle mode, 70 miles on pedal assist mode
- SPEED: Up To 28 MPH on Throttle
- WEIGHT: 75 lbs (Battery Included)
- TOTAL WEIGHT LIMIT: 330 lbs
- RIDER HEIGHT: 5'4"-6'4"FT
- PEDAL ASSIST: 5 levels
Frameset
- FRAME: 6061 Aluminum Alloy
- FORK: Hydraulic Suspension Fork with Adjustable& lockout
- FRAME STYLE: Step Through
- Rear Shock: Air, Four-bar Linkage suspension
Wheelset
- RIM: Aluminum Alloy
- SPOKES: Aluminum Alloy
- TUBES: Butyl Rubber, Schrader Valve
- TIRES: 20x4.0" Puncture Resistant Fat Tire
Ebike System
- THROTTLE: Twist Throttle with Cruise Control
- MOTOR: 1400w (peak), 750w (sustained), 48V Brushless Rear Hub Motor with 80Nm
- DISPLAY: 4.0" VA Display LED Integrated with APP Control
- BATTERY: Removable Internal Lithium-ion 48V 20AH (960Wh), UL 2849 Compliant
- SENSORS: Torque Sensor, Speed Sensor, Brake Sensor
- CHARGER: UL 1310 Certification 3A Fast Charger, 6-7 Hour Charging Time
- LIGHTS: Headlight and Taillight with Turn Signals & Brake Light
- BRAKES: F & R Hydraulic Disc Brakes, 180mm Rotors
- Controller: 48V 25A Frame-integrated Controller
Drivetrain
- BOTTOM BRACKET: Square Taper, Sealed, Speed Sensor
- PEDALS: 9/16"
- REAR DERAILLEUR: 7 Speed Shimano Rear Derailleur
- CASSETTE: Shimano 7-Speed
- SHIFT LEVER: 7 Speed Trigger
Included in the Box
Luckeep X3
User Manual
Charger
Battery
Remote & Key
Toolkit Box
About Luckeep X3
To learn more about Luckeep electric bicycles, please browse our FAQs.
What are the benefits of the full suspension system on the Luckeep X3?
The full suspension system, featuring an air and four-bar linkage suspension along with an adjustable hydraulic fork, absorbs shocks from uneven terrain. This ensures a smoother ride, better traction, and improved comfort, whether you're commuting on city streets or exploring rugged trails.
How does the torque sensor enhance the riding experience?
The torque sensor measures the force applied to the pedals and adjusts the motor assistance accordingly. This provides a more natural riding feel, smoother acceleration, and better energy efficiency, making climbs and long rides effortless.
Can the full suspension and torque sensor handle off-road conditions?
Absolutely! The full suspension system offers superior shock absorption on rough terrain, while the torque sensor provides precise motor support for challenging climbs and varying conditions, ensuring stability and control during off-road adventures.
What is the Air & Four-Bar Linkage Suspension, and how does it work?
The air suspension system uses a lightweight, adjustable air shock to absorb impacts, providing a smoother and more customizable ride. Riders can fine-tune the air pressure based on their weight and terrain preferences for optimal comfort and performance.
The four-bar linkage suspension is a sophisticated design that connects the frame, wheel, and shock absorber using four pivot points. This creates a mechanical advantage, reducing pedal bob and brake jack—common issues in traditional suspension systems. The result is better traction, improved stability, and efficient energy transfer, especially on bumpy or uneven trails.
Combined, the air and four-bar linkage suspension ensure that every ride on the Luckeep X3 is smooth, controlled, and ready for any terrain.
Do I need a special license to ride an E-Bike?
Luckeep E-bikes are designed under US regulations. Therefore riders will not need any special license to ride our bikes. This is true only of Luckeep branded bikes and does not carry over to all other types of electric bikes.
Have Luckeep's electric bikes been safety certified?
All Luckeep electric bikes for sale have passed UL 2849 international certification and undergone tens of thousands of laboratory tests to ensure that every Luckeep electric bike leaving the factory has the best performance.
