1130W
Peak Motor
28 MPH
Top Speed
50 Miles
Max Range
20 x 4"
Fat Tires
720Wh
Battery Capacity
5'4"-6'4"
Recommended Height
Luckeep X1 Lite - Combo
A more cost-effective 20” x 4” fat tire folding ebike
1130W
Peak Motor
28 MPH
Top Speed
50 Miles
Max Range
20 x 4"
Fat Tires
720Wh
Battery Capacity
5'4"-6'4"
Recommended Height
Popular upgrades
Air Pump
$69.00
Saddle Bag
$79.00
Cable Lock
$39.00
X1 Spare Battery
$349.00
Customer Support Service: +1 (323) 448-7808 support@luckeepbike.com
UL Certified
Safety Certified in Accordance with UL 2849
Fast & Free Shipping
Shipping fees and tax are covered by Luckeep and will be completed by FedEx throughout the United States. Once the order is shipped, a shipment confirmation email and shipment tracking will be sent to your email address. ( We DO NOT ship to PO BOXES or APO.) It may take 2-5 days to deliver. Learn More
30 Day Risk Free Trial
We offer a 30-day trial period for all our brand new Ebike products. If you're not satisfied with the product, Luckeep's return policy allows you to return it within 30 days of receipt. However, to qualify for this, your product must be free of wear, dirt, and the mileage on the odometer should be less than 10 miles. Learn More
2 Year Warranty
All Luckeep ebikes are included in the 2-year all-inclusive warranty provided by our manufacturer for the original owner in case of all manufacturing defects. The warranty service does not include free accessories and batteries). After the initial owner receives the product, he begins to enjoy a 2-year warranty period. Learn More
Luckeep X1 Lite - Combo
| Model | Luckeep X1 Lite | Luckeep X1 |
| Motor | 750W Brushless Rear Hub Motor | 750W Brushless Rear Hub Motor |
| Peak Motor | 1130W | 1400W |
| Top Speed | 28MPH | 28MPH |
| Torque | 80 Nm | 80 Nm |
| Brakes | Mechanical | Hydraulic |
| Max Range | 40-50 miles | 50-60 miles |
| Frame | Step-over | Step-over |
| Foldable | Yes | Yes |
| Rider Height | 5'3" - 6'1" | 5'3" - 6'1" |
| Max Load | 330 lbs | 330 lbs |
| Weight | 70 lbs | 76 lbs |
| Tire | 20x4.0"
Spoke wheels |
20x4.0"
Magnesium alloy integrated molded wheels |

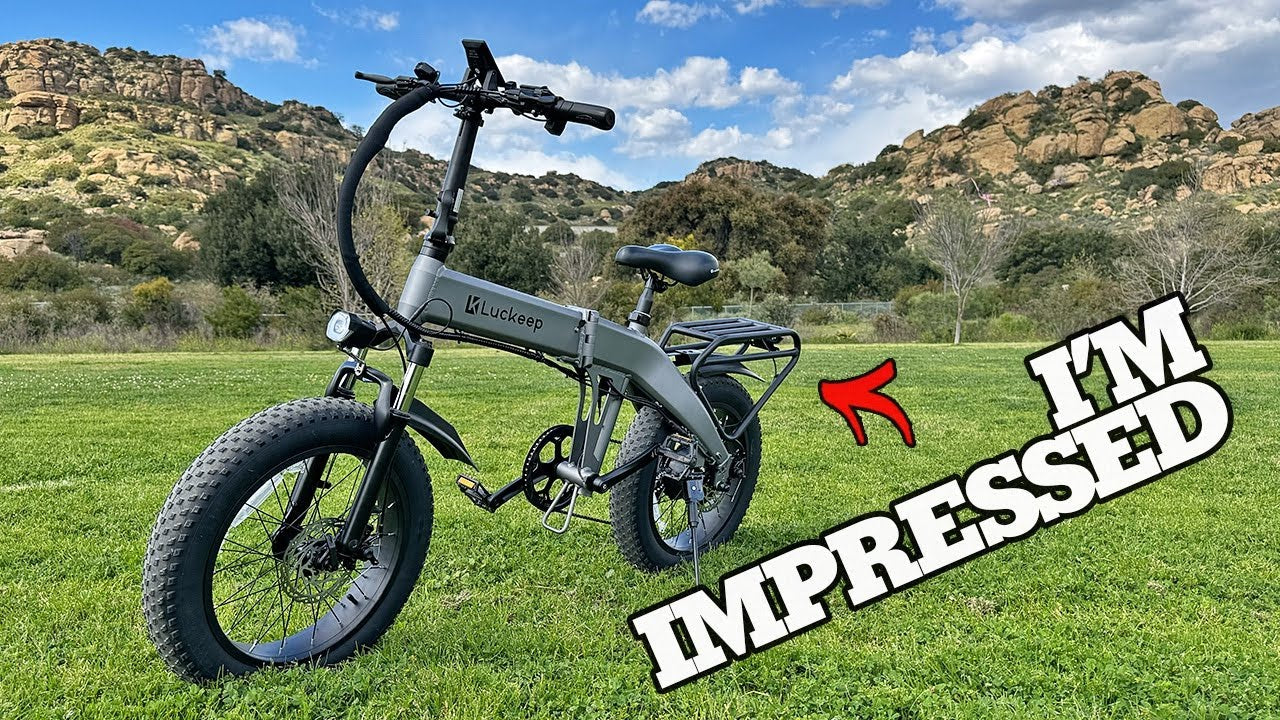

Rider Review
"But the fact is, everything was beyond my expectations."
@Volted Adventures
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
Shipping Information
Shipping fees are covered by Luckeep and will be completed by FedEx throughout the United States. Once the order is shipped, a shipment confirmation email and shipment tracking will be sent to your email address. ( We DO NOT ship to PO BOXES or APO.) It may take 2-7 days to deliver. Learn More
30 Day Risk Free Trial
We offer a 30-day trial period for all our brand new Ebike products. If you're not satisfied with the product, Luckeep's return policy allows you to return it within 30 days of receipt. However, to qualify for this, your product must be free of wear, dirt, and the mileage on the odometer should be less than 10 miles. Leaen More
2 Year Warranty
All Luckeep ebikes are included in the 2-year all-inclusive warranty provided by our manufacturer for the original owner in case of all manufacturing defects. The warranty service does not include free accessories and batteries). After the initial owner receives the product, he begins to enjoy a 2-year warranty period. Learn More
Customer Support
If you have any questions regarding products, services, orders, or various types of support, please feel free to contact us.
- Mon-Fri 8 a.m.- 4 p.m. PST
FAQ’s
Typically, our product manual can address most of your concerns, but you can still browse our FAQs or subscribe to our YouTube channel for more detailed video explanations.
Powerful Hub-Motor with High Torque
Luckeep’s independently developed high-power motor can instantly deliver up to 1130W of power, effortlessly conquering 20° steep slopes. Our unique LuckPower™ technology ensures a lifespan of up to 10 years while making your ride quieter. Why not start by testing it on the mountain trails right outside your door?
Always protecting your bike.
Luckeep’s next-generation anti-theft technology replaces the traditional remote unlocking method with NFC 2 technology to protect your bike. If someone attempts to move your bike without unlocking it, the X1 Lite will instantly emit an alarm as loud as 70 decibels (loud enough to hear even while you’re shopping in a convenience store). Moreover, NFC technology allows you to register your phone, so you can unlock your bike using your phone for future use.
Raising the bar.
All Luckeep ebikes are either UL Certified or tested by ACT to comply with UL 2849. This means our bikes and electric systems have undergone rigorous testing to meet safety standards set by UL, a respected third-party organization.
Discover X1 Lite
Inspired by our classic Luckeep X1, we've made some changes to the configuration to make it more cost-effective while maintaining its comfortable riding experience. Additionally, we've added more color options to the Luckeep X1, offering you a more vibrant selection for your summer outings.

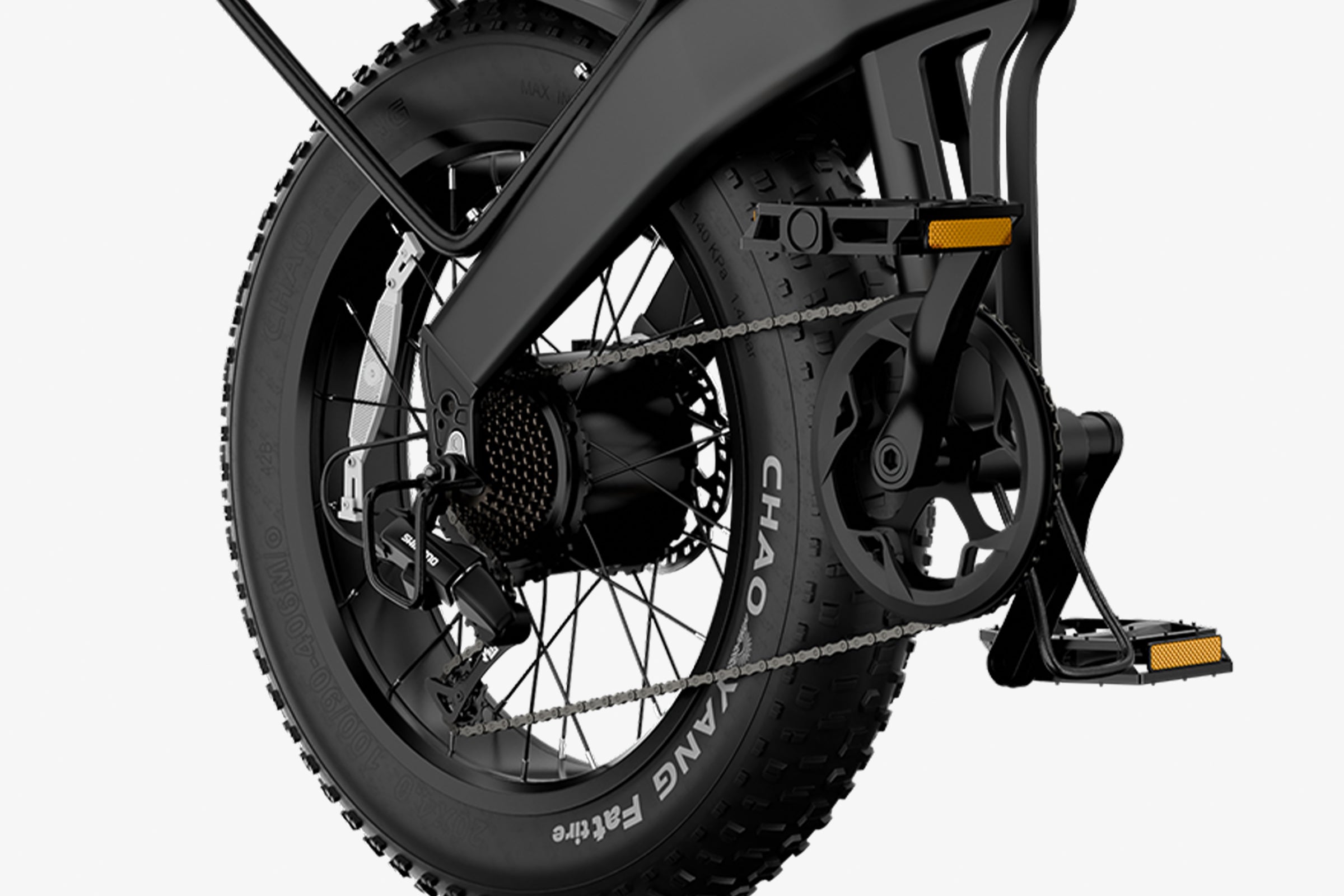

750W Brushless Rear Hub Motor
A 750W rear-hub motor coupled with a fast charging, Removable Internal Lithium-ion 48V battery means there's plenty of power to hit the streets or go off-roading.

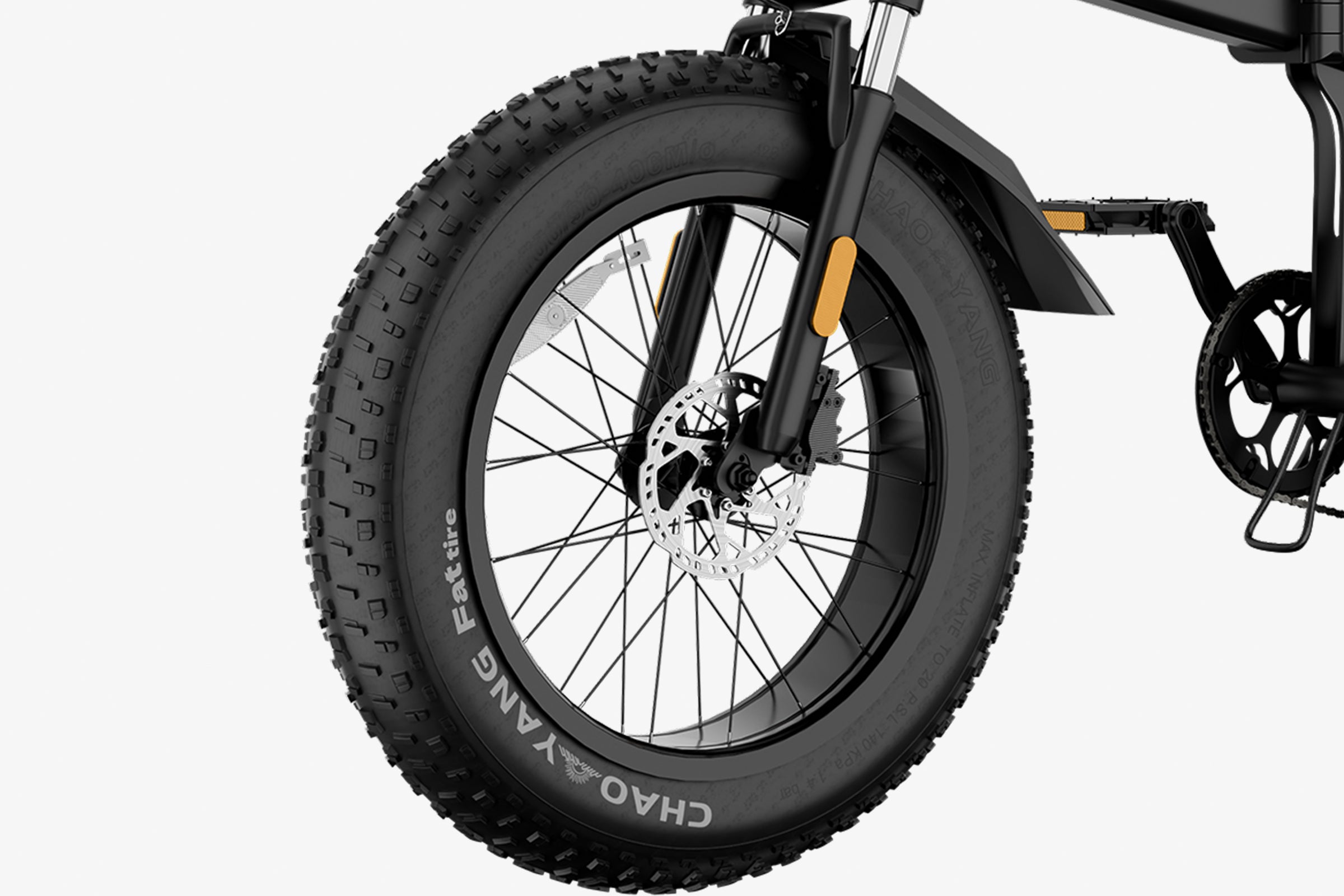

20x4.0" Puncture Resistant Fat Tire
ChaoYang 4" fat tires will take you off the beaten path and add more adventure to your next ride.

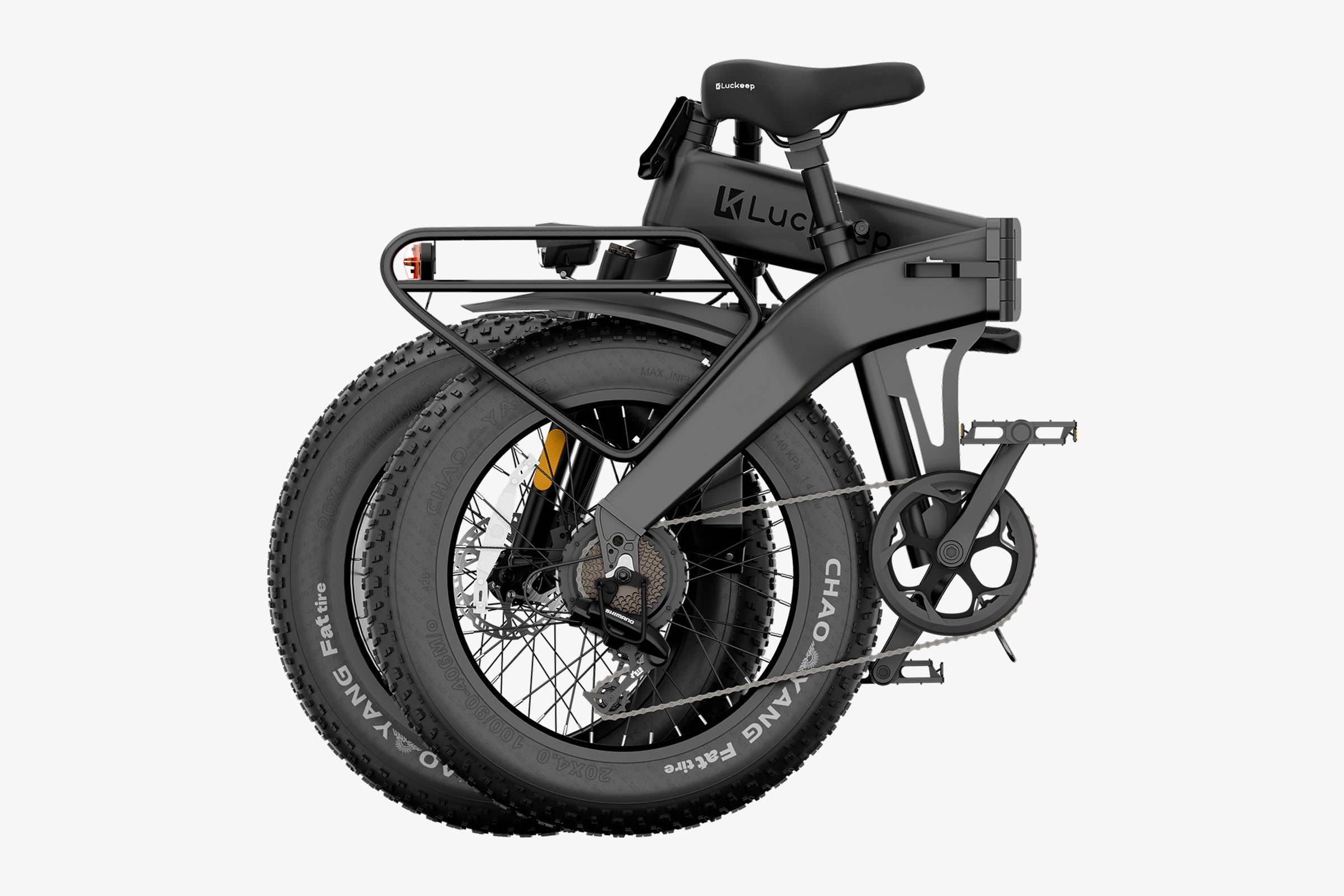

Foldable Frame
X1 Lite fits where most ebikes won't. Simply fold it, store it, then take it out when you're ready to ride.

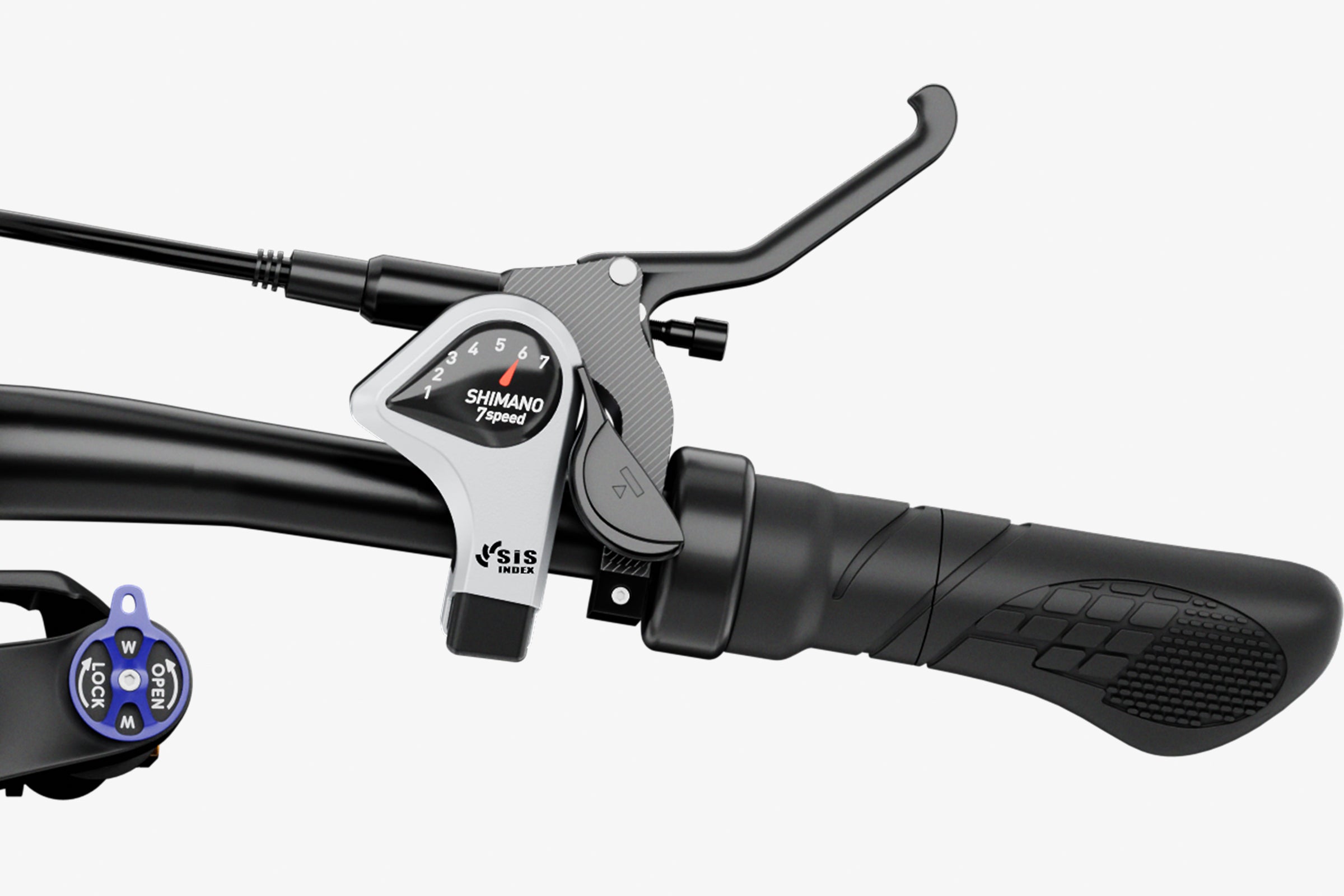

Shimano 7-Speed
Our thumb throttle provides smooth and precise control over your electric bike's power output. Effortlessly accelerate and maintain your desired speed with a simple push of your thumb.

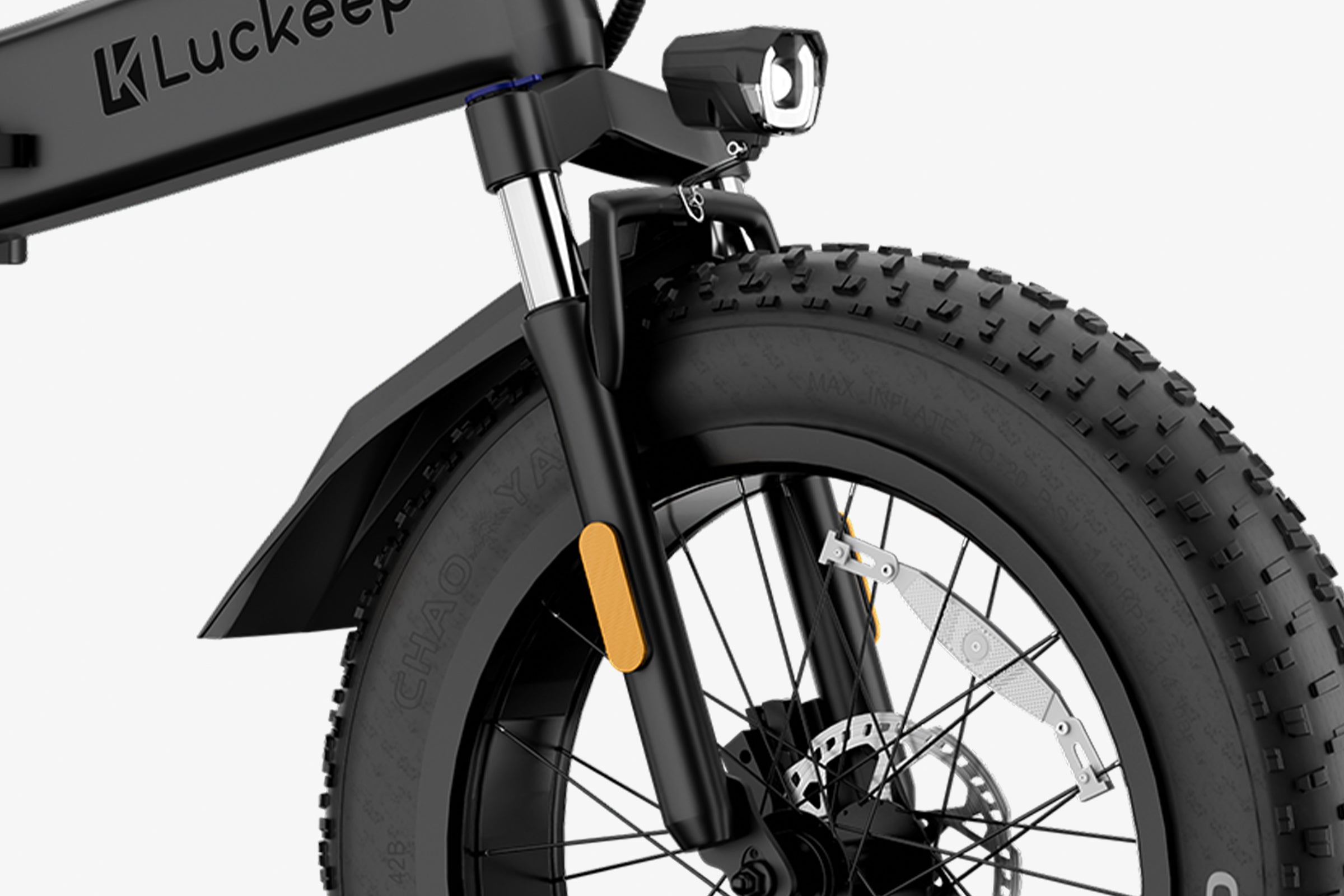

Front Suspension
Enjoy a smoother ride on any terrain with our lockable and adjustable front suspension forlk, designed to ease bumps and prevent fatigue even on the roughest hills.

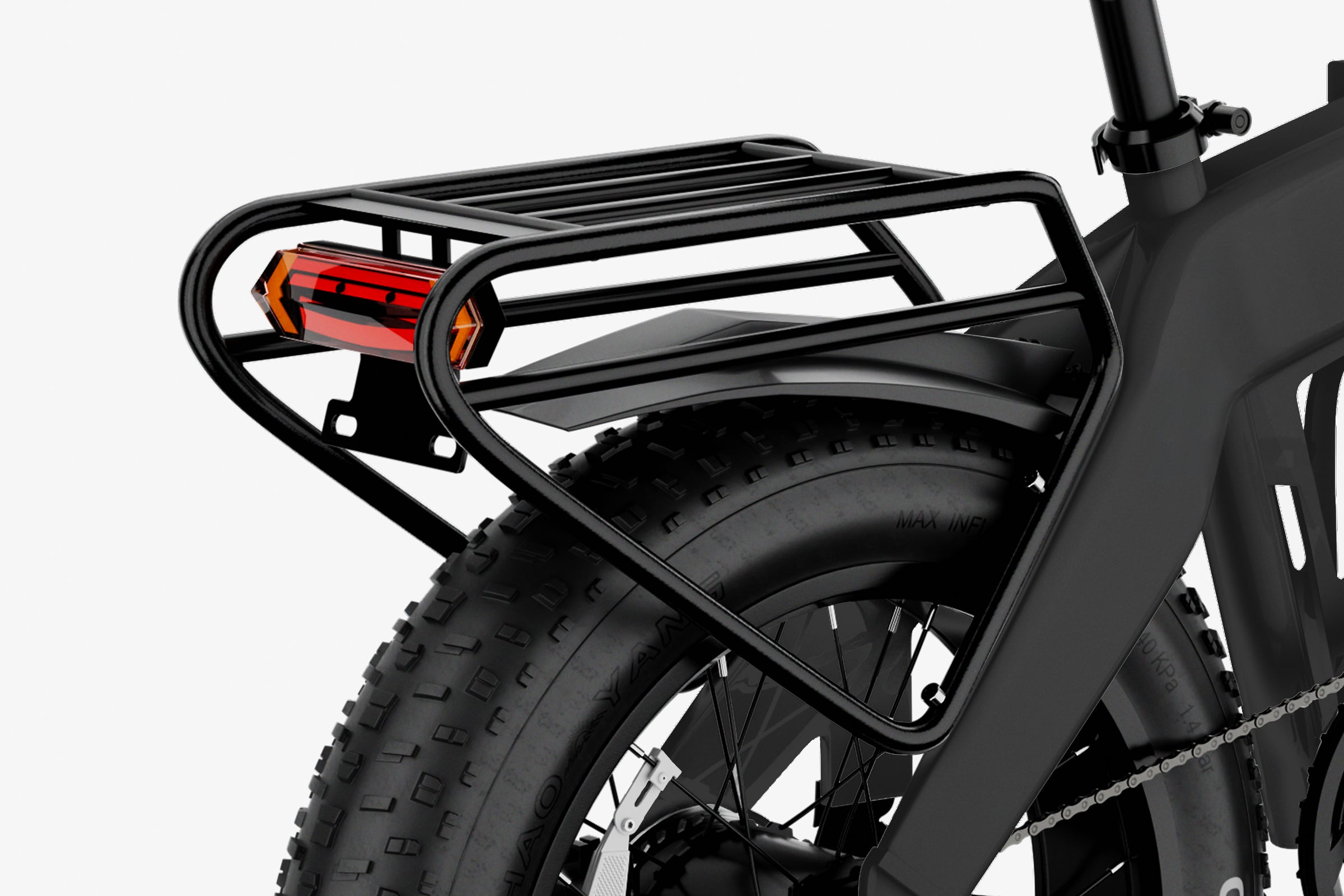

Sturdy Rear Frame
The sturdy construction allows you to carry heavy loads. You can use it to secure suitcases, bags, baskets and other items.

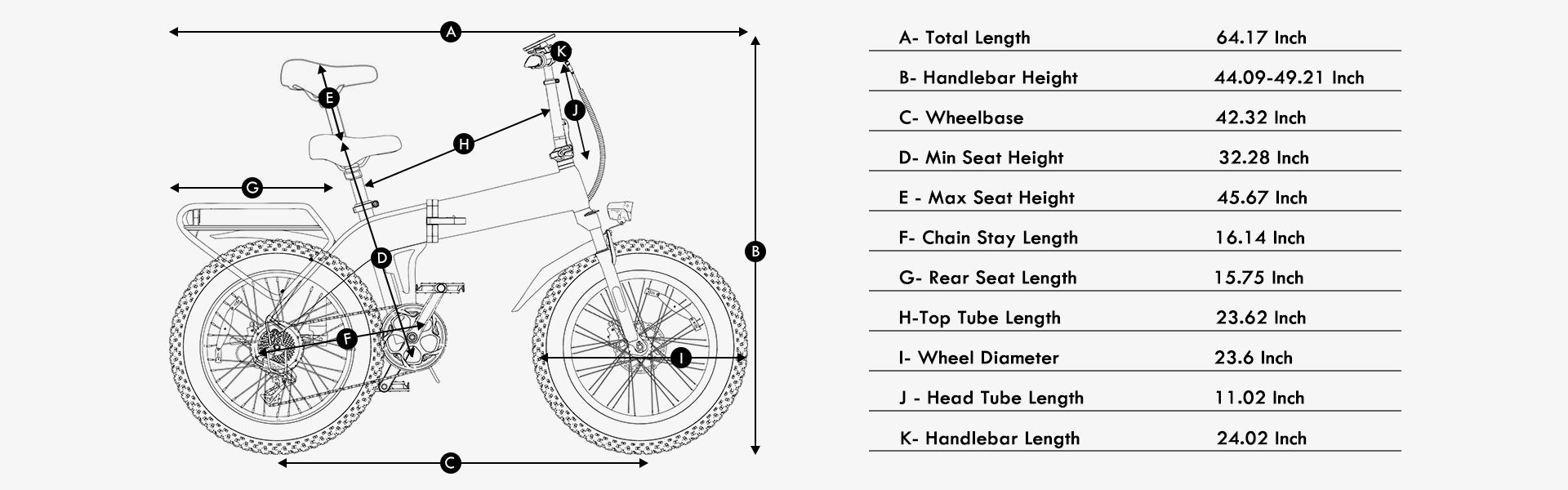

Technical Specifications
General Info
- MODEL: Luckeep X1 Lite Foldable Ebike
- IDEAL USE: All-terrain
- RANGE: 35 miles on Throttle, 50 miles on pas mode.
- SPEED: Up To 28 MPH on Throttle
- WEIGHT: 70 lbs
- TOTAL WEIGHT LIMIT: 330 lbs
- FOLDING: Yes
- RIDER HEIGHT: 5'4"-6'4"FT
- PEDAL ASSIST: 5 levels
Frameset
- FRAME: 6061 Aluminum Alloy
- FORK: Suspension Fork with 80mm Travel, with Lockout
- FRAME STYLE: Step-Over
Wheelset
- RIM: Aluminum Alloy
- SPOKES: Yes
- TUBES: Butyl Rubber, Schrader Valve
- TIRES: 20x4.0" Puncture Resistant Fat Tire
Ebike System
- THROTTLE: Twist Throttle with Cruise Control
- MOTOR: 1130w (peak), 750w (sustained), 48V Brushless Rear Hub Motor 80Nm
- DISPLAY: Display LCD Integrated
- BATTERY: Removable Internal Lithium-ion 48V 15AH (720Wh), UL 2849 Compliant
- SENSORS: Speed Sensor, Brake Sensor
- CHARGER: US Standard 2A Charger, 6-7 Hour Charging Time
- LIGHTS: inclued
- BRAKES: Mechanical Disc Brakes,160mm Rotors
Drivetrain
- BOTTOM BRACKET: Square Taper, Sealed, Speed Sensor
- PEDALS: 9/16"
- REAR DERAILLEUR: 7 Speed Shimano Rear Derailleur
- CASSETTE: Shimano 7-Speed
- SHIFT LEVER: 7 Speed Trigger
Included in the Box
Luckeep X1 Lite
User Manual
Battery Charger
Battery Pack
Headlight
Accessories
Finding yourself with Luckeep Bike
Join Luckeep, Discover More Fun With Us!
FAQs
To learn more about Luckeep electric bicycles, please browse our FAQs.
How long until I receive my bike?
Orders will be processed within 48 business hours (partial shipping delays will be notified to you via the website's bulletin board and email). Once your order is shipped, a shipping confirmation email will be sent to your email. We use FedEx or UPS for shipping. Please allow 2 to 7 business days for the goods to reach your designated location. Any delivery dates provided by Luckeep are estimates. (For some used models or repair parts, we typically require 10 business days for processing.)
Do I need a license for riding Ebike?
No, you don’t need a license for riding Ebike. Please read Safety Instructions carefully for your safety.
How do I charge my battery?
You can check the Battery and Charger of our E-BIKE USER MANUAL. The methods are listed in the manual with more detail.
How to clean my Ebike?
Although we have maximized the waterproof performance of the vehicle, we still recommend removing the battery when cleaning the body of the bike. Afterward, you can clean it like you would a regular bicycle.
Will my Ebike assembled when it arrives?
The Ebike is mostly assembled when it arrives, a few more steps to finish the assembling. Please carefully watch the assembly tutorial or read the E-BIKE USER MANUAL for installation.
